Boat part number 1120510 is a new console electrical panel for Makaira model Blue Wave boats, part number 2180-0458. Manufacturer unavailable, but the part number given is PPE000158.

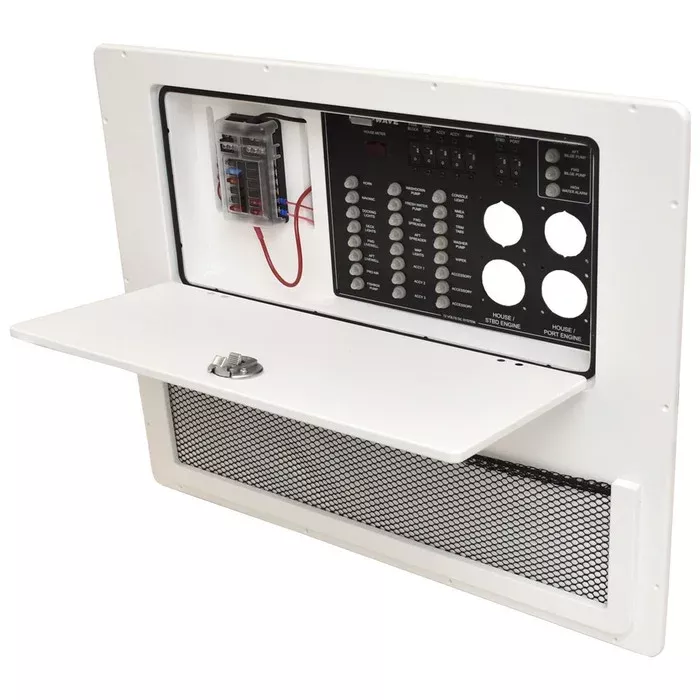

This is a white starboard panel with a breaker panel and fuse block pre-installed. It features a mesh storage net on the front and a wiring harness running out the back side. The panel measures approximately 26″ H x 32″ W overall with a 10 1/4″ H x 23 1/2″ W opening. It requires a 12 1/4″ H x 25″ W cutout to mount flush and installs with (14) 3/16″ Dia. holes around the edge.
Features the following pre-installed hardware and cutouts:
- (27) Push-to-Reset Breakers
- (7) Flat Toggle Breakers
- LCD Voltmeter Display
- 12-Position Fuse Block
- 10-Position Bus Bar
- (2) 4-Port NMEA 2k T-Connectors
- (2) 2″ Dia. Cutouts
- (2) 2 3/8″ Dia. Cutouts
- 7″ H x 27″ W Storage Pocket
Tag Reads: HARNESS, CONSOLE, ANALOG, MAKAIRA, TWIN
See photos for connections.
Specifications:
- Boat Manufacturer: Blue Wave Boats
- Part Number: 2180-0458
- Part Manufacturer: Unavailable
- Part Number: PPE000158
- Material: Starboard
- Color: White
- Finish: Textured
- Overall Dimensions: 26″ H x 32″ W
- Mounts: (14) 3/16″ Dia. Holes
