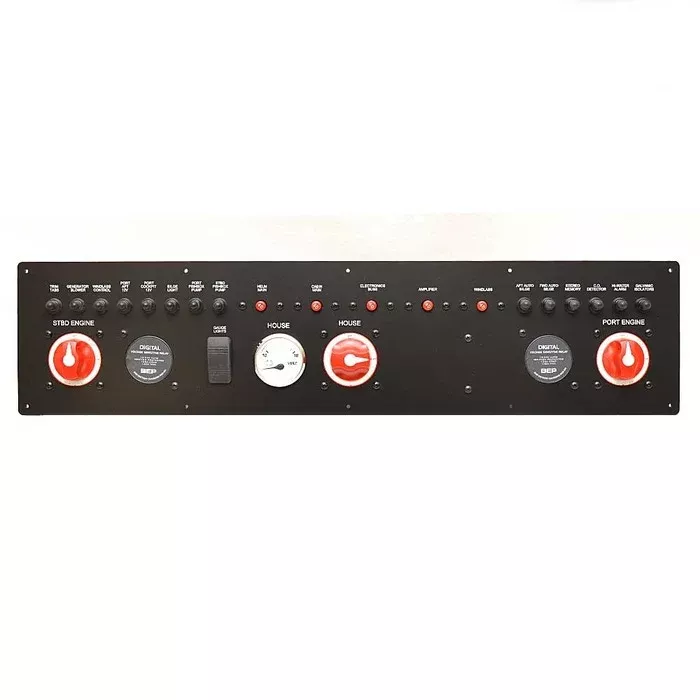

Boat part number 1090710 is a new battery switch breaker panel, part manufacturer unavailable, part number AD-050-523 . Please check with your local boat brand dealer for boat / brand / model / year cross-referencing compatibility.
This battery breaker panel is constructed out of black marine grade plastic, and measures approximately 28″ L x 6 1/2″ H overall. Mounts with (10) 3/16″ Dia. mounting holes. Features (1) Faria volt gauge with a domed lens, silver colored bezel, white face, orange-tipped black needle, and black graphics.
Features the following:
- (3) Blue Sea Systems ON/OFF Battery Switches (P/N 6006) – (1) Stbd Engine, (1) House, (1) Port Engine
- (2) Blue Sea Systems Digital Voltage Sensitve Relays – 12/24V Auto 140A Max
- (1) ON/OFF Gauge Lights rocker switch
- (1) House Volt Gauge (P/N VBO008A) – 10-18V
Features the following booted push-to-reset circuit breakers:
- (1) 20A Trim Tabs
- (1) 10A Generator Blower
- (1) 5A Windlass Control
- (1) 10A Port Aft 12V
- (1) 10A Port Cockpit 12V
- (1) 5A Bilge Light
- (1) 25A Port Fisbox Pump
- (1) 25A Stbd Fishbox Pump
- (1) 10A Aft Auto Bilge
- (1) 5A Fwd Auto Bilge
- (1) 15A Stereo Memory
- (1) 2A C.O. Detector
- (1) 5A High-Water Alarm
- (1) 5A Galvanic Isolators
Features the following push-to-reset circuit breakers:
- (1) 40A Helm Main
- (1) 50A Cabin Main
- (1) 40A Electronics Buss
- (1) 40A Amplifier
- (1) 40A Windlass
Specifications:
- Part Manufacturer: Unavailable
- Part Number: AD-050-523
- Material: Plastic
- Color: Black
- Overall Dimensions: 28″ L x 6 1/2″ H
- Battery Switch Continuous Rating: 300A
- Intermittent Rating: 500A
