Boat part number 1075743 is a new circuit breaker dash panel, part manufacturer unavailable, part number 206492E .

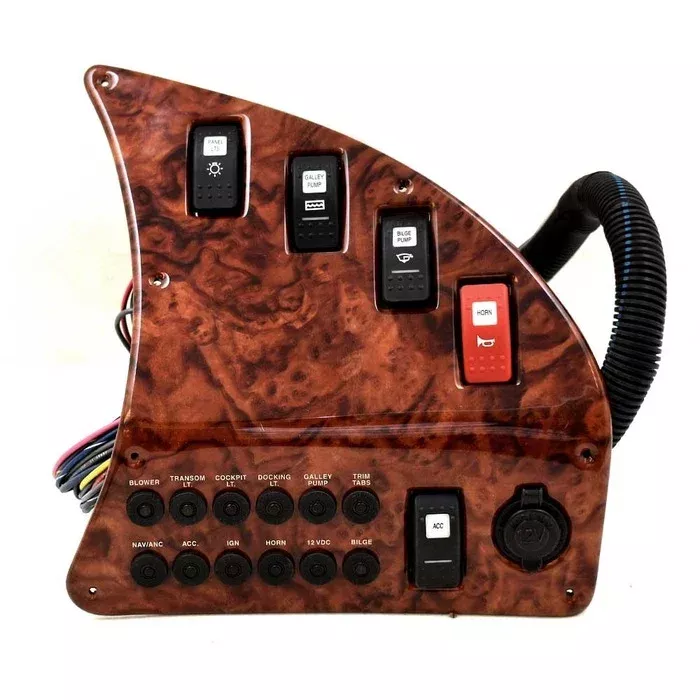

This curved switch panel is constructed from brown marine grade plastic with a faux woodgrain pattern and a glossy finish. It measures approximately 10 5/8″ W x 10 3/8″ H x 6 5/8″ D overall. There are (7) 1/8″ Dia. mounting holes (hardware not included). See photos for measurements.
This panel includes the following:
- (1) Panel Lights – Momentary ON/OFF/Momentary ON Illuminated Rocker Switch
- (1) Galley Pump – ON/OFF Illuminated Rocker Switch
- (1) Bilge Pump – ON/OFF Illuminated Rocker Switch
- (1) Horn – Momentary ON/OFF Illuminated Rocker Switch
- (1) ACC – ON/OFF Illuminated Rocker Switch
- (1) 12V Receptacle
- (12) Push to Reset Breaker Switch
There are the following connections:
- (1) 6-pin male
- (1) 11-pin female
- (1) 4-pin male
- (1) 12-pin female
Specifications:
- Part Manufacturer: Unavailable
- Part Number: 206492E
- Material: Plastic
- Color: Brown
- Pattern: Faux Woodgrain
- Finish: Glossy
- Overall Dimensions: 10 5/8″ W x 10 3/8″ H x 6 5/8″ D
- Mounts: (7) 1/8″ Dia. mounting holes
