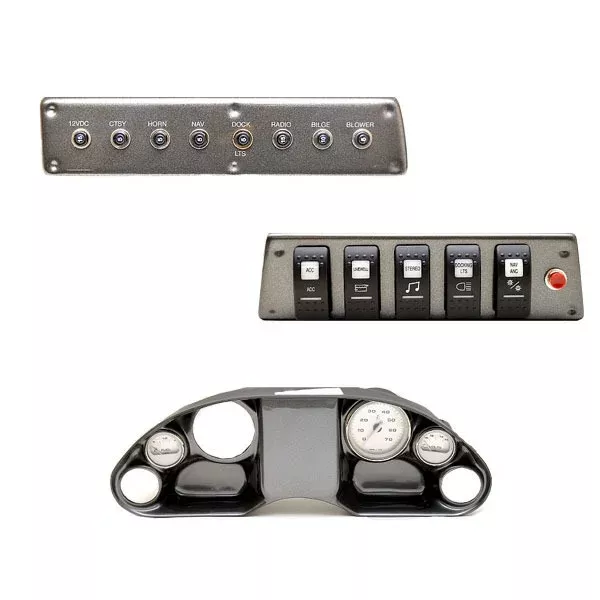

Boat part number 1069164 is a new outboard 3 piece dash panel assembly for a 2009, 2086 Sweetwater model Godfrey Boat, part number 217230 .
These panels are constructed out of metallic graphite gray colored molded marine grade plastic.
This kit includes (1) gauge panel with Kronos Silver Series gauges from Faria. The gauge panel measures an approximate 20 3/4″ L x 7 3/8″ H x 2 3/4″ D (not including mounted gauges). Has (1) pre-installed gauge wiring harness.
This panel features the following pre-installed gauges and cutouts:
- (1) 3 3/8″ Dia. cutout
- (2) 2″ Dia. cutouts
- (1) Fuel – part number: GPC604 – Has (1) 4 pin male connection.
- (1) Volt – part number: VCP600B – Has (1) 4 pin male connection.
- (1) 7000 RPM Tachometer – part number: TCC602A – Has (1) 6 pin male and (1) 6 pin female connection. Set up for 4/6/8/10/12 outboard engines.
This kit includes (1) horn / rocker switch pane. Measures approximately 9″ L x 2 3/8″ H overall. Has (1) pre-installed wire harness.
This panel features the following pre-installed items:
- (1) Black on/off illuminated “ACC” rocker switch
- (1) Black on/off illuminated “Livewell” rocker switch
- (1) Black on/off illuminated “Stero” rocker switch
- (1) Black on/off illuminated “Docking LTS” rocker switch
- (1) Black on/off/on illuminated “Nav/Anc” rocker switch
- (1) Red horn push button
This kit also includes (1) breaker panel. Measures approximately 9 3/8″ L x 2 1/8″ H overall. Has (1) pre-installed wire harness.
This panel includes the following marked pre-installed breakers.
- (1) “12VDC” – 15
- (1) “CTSY” – 5
- (1) “Horn” – 5
- (1) “Nav” – 5
- (1) “Dock LTS” – 5
- (1) “Radio” – 15
- (1) “Bilge” – 10
- (1) “Blower” – 5
Specifications:
- Boat Manufacturer: Godfrey
- Model: 2086 Sweetwater
- Year: 2009
- Part Number: 217230
- Color: Metallic Graphite Gray
