Boat part number 1082086 is a new piano hinge for Malibu Boats, part number 5641018 . May be used on other boats.

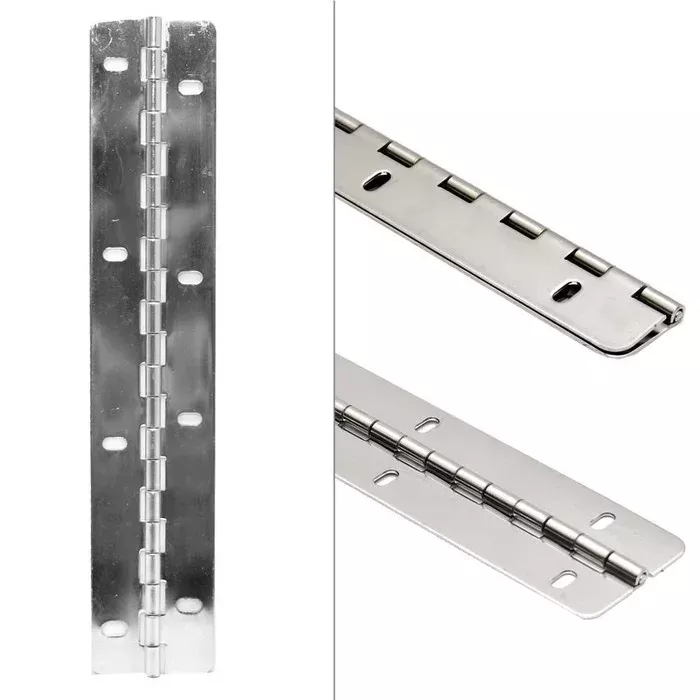

This piano hinge is constructed from 16 gauge stainless steel and measures approximately 2″ W (1 1/8″ W folded) x 10 1/2″ H overall. It has a pin diameter of approximately 1/4″ Dia. and (8) 1/4″ W x 3/8″ H slotted mounting holes.
Please see photo for additional measurements.
Specifications:
- Boat Manufacturer: Malibu
- Part Number: 5641018
- Part Manufacturer: Unavailable
- Material: Stainless Steel
- Color: Silver
- Finish: Polished
- Gauge: 16
- Pin Diameter: 1/4″ Dia.
- Overall Dimensions: 2″ W (1 1/8″ W Folded) x 10 1/2″ H
- Mounts: (8) 1/4″ W x 3/8″ H slotted holes
