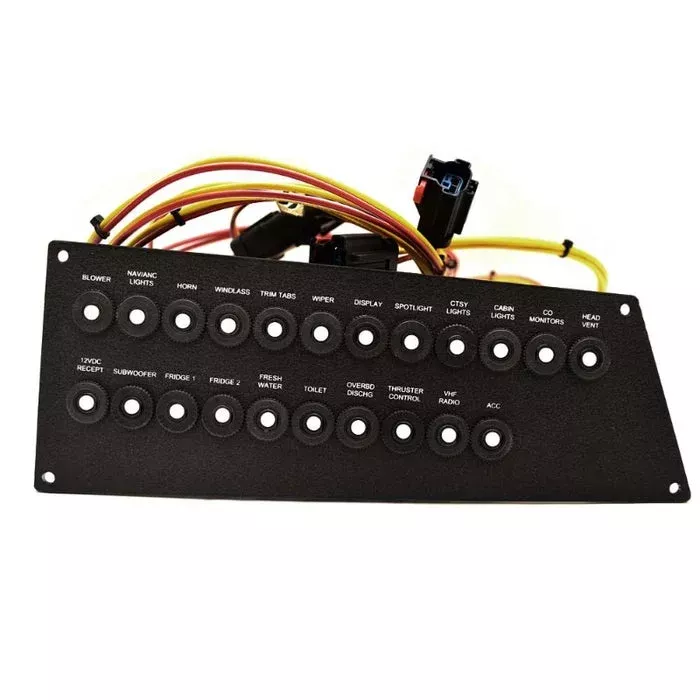

Boat part number 1075819 is a new 12VDC breaker panel. Manufacturer unavailable, part number 025-5074 .
This breaker panel is constructed out of powdered coated aluminum with a black textured finish. Measures approximately 11 1/4″ W x 4 1/4″ H and tapers to 3 3/4″ H overall. There are (4) approximate 1/4″ diameter mounting holes around perimeter of panel.
Connections:
- (1) Lug Terminals
- (1) 2-Pin Female
- (3) 2-Pin Female
- (1) 8-Pin Male
- (1) 14-Pin Male
This breaker panel hosts (22) pre-labeled Press-To-Reset breakers:
- (1) Blower
- (1) NAV / ANC Lights
- (1) Horn
- (1) Windlass
- (1) Trim Tabs
- (1) Wiper
- (1) Display
- (1) Spotlight
- (1) CTSY Lights
- (1) Cabin Lights
- (1) CO Monitors
- (1) Head Vent
- (1) 12VDC Receptacle
- (1) Subwoofer
- (1) Fridge 1
- (1) Fridge 2
- (1) Fresh Water
- (1) Toilet
- (1) OVERBD Discharge
- (1) Thruster Control
- (1) VHF Radio
- (1) ACC
Specifications:
- Part Manufacturer: Unavailable
- Part Number: 025-5074
- Material: Aluminum
- Finish: Powder Coated
- Color: Black
- Finish: Textured
- Overall Dimensions: 11 1/4″ W x 4 1/4″ H (Tapers to 3 3/4″ H)
- Mounts: (4) 1/4″ Dia. Holes
