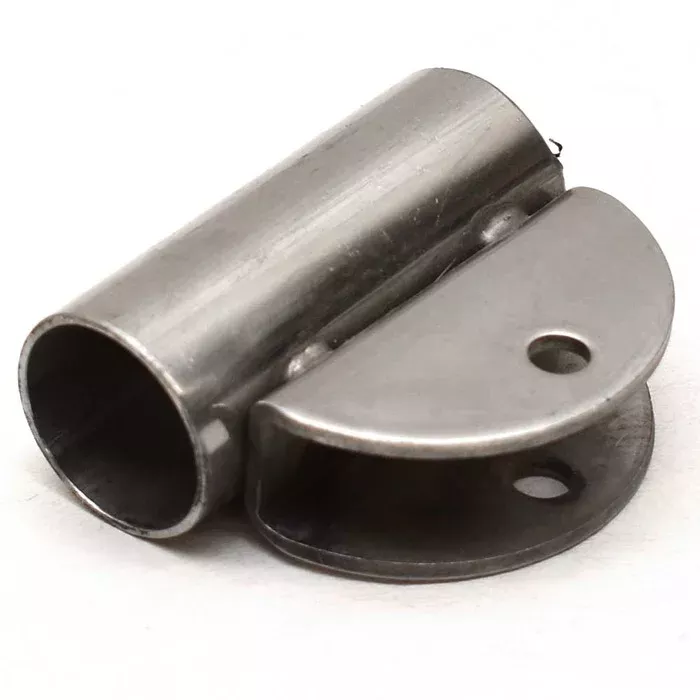

Boat part number 1094179 is a new pivoting transom door middle hinge, part manufacturer and number unavailable.
This pivoting transom door hinge is constructed out of stainless steel, and will fit over a 7/8″ ODia. pivoting door tube. Measures approximately 2 3/8″ H x 1″ W x 2″ D overall, and has a maximum door panel thickness of approximately 1/2″ W. It has (2) 1/4″ mounting holes. See photos for additional measurements.
Specifications:
- Part Manufacturer: Unavailable
- Part Number: Unavailable
- Material: Stainless Steel
- Color: Silver
- Finish: Polished
- Overall Dimensions: 2 3/8″ H x 1″ W x 2″ D
- Inner Diameter: 7/8″
- Max Panel / Door Thickness: 1/2″ W
- Mounts: (2) 1/4″ Mounting Holes
