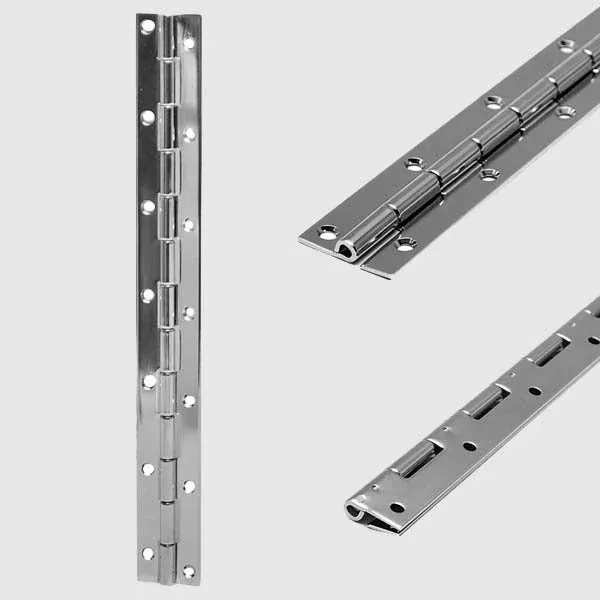

Boat part number 1042867 is a new-old stock piano hinge from BRP, part number 291002975 .
This piano hinge is constructed out of 16 gauge stainless steel with a polished finish. It measures approximately 1 1/2″ W x 13″ H overall when open and approximately 1″ W x 13″ H when folded. It has an approximate 1/8″ Dia. pin diameter and (7) 1/8″ Dia. countersunk mounting holes.
Specifications:
- Part Manufacturer: BRP / OMC / Johnson Evinrude
- Part Number: 291002975
- Material: Stainless Steel
- Gauge: 16
- Color: Silver
- Finish: Polished
- Open Dimensions: 1 1/2″ W x 13″ H
- Folded Dimensions: 1″ W x 13″ H
- Pin Diameter: 1/8″ Dia.
- Mounts: (7) 1/8″ Dia. Countersunk Holes
