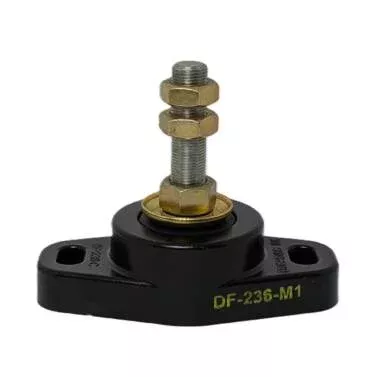

Bushings Inc DF-236-M1 Dual-Flex engine mount for boat engines 750 to 2200 lb.
This mount is built from heavy-duty aluminum alloy and features an integrated lip at the top of the casting to help resist the engine’s upward pull. The mount also includes a durable, oil and fuel resistant elastomer element which is raised above top of the casting to accommodate
engine mounting angles. Each purchase is for one mount. Most applications will require 2 or 4 mounts.
Features
- Mount-requires only 2-7/8″ minimum clearance from casting base to top of leveling nut
- Bottom pad prevents excessive impact
- 3/4″ threaded stud for vertical height and slotted casting for horizontal adjustment
Specifications
- Complete with leveling, locking and secondary lock nuts
- Aluminum base cast with 1/2″ slotted holes for 1/2″ bolts or lag screws
- All steel parts are zinc trivalent plated for corrosion resistance
- 3/4″ – 16 threads stud
- Hole centers: 5.0″
- Weight range: 750-2200 lb.
| Make | Engine Model |
|---|---|
| Ford | SSD655N, SSD655T, DSD659, DSD660, DSD662 (Gas engines) |
| Iveco | 8041SRM15, 8061M05 |
| John Deere | 3.9 Liter & 4.5 Liter engines |
| Perkins | M135, M165T, M200TI, M240TI, M275TI, M4-236M |
| Renault | RC55D, RC80D, RC90D, RC130DTS, RC140 |
| Volvo | TAMD60A, TAMD61, MD70B, TAMD70B, TAMD70C |
| Westerbeke | W80, W100, W120 |
