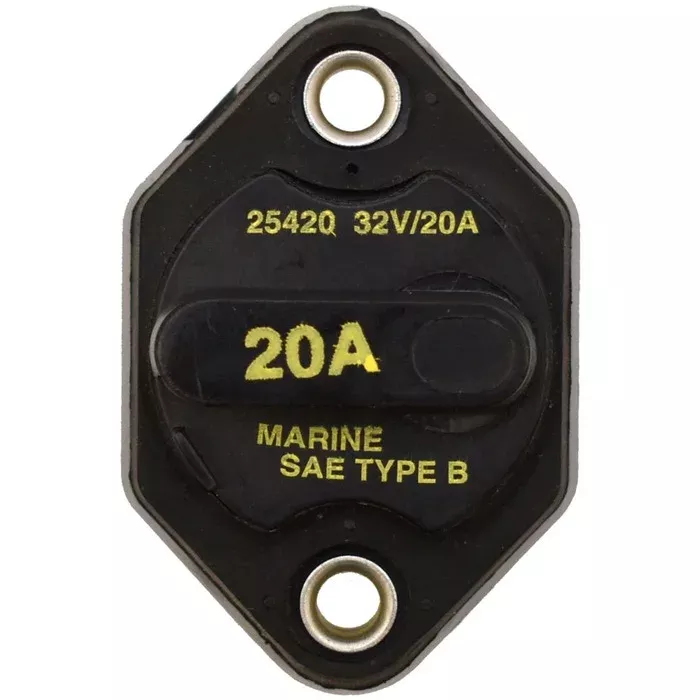

Boat part number 1120444 is a new manual reset breaker from Bussmann, part number 25420.
This breaker is constructed out of plastic with a rubberized face and measures approximately 2 1/8″ H x 1 1/2″ W x 1 1/2″ D overall. Rated for 20A at 32VDC and connects with (2) 1/8″ Dia. studs on the back. It mounts with (2) 3/16″ Dia. holes set apart 1 1/2″ center-to-center.
Specifications:
- Part Manufacturer: Bussmann
- Part Number: 25420
- Material: Rubber / Plastic
- Color: Black
- Finish: Matte
- Overall Dimensions: 2 1/8″ H x 1 1/2″ W x 1 1/2″ D
- Amperage: 20
- Voltage: 32VDC
- Mounts: (2) 3/16″ Dia. holes set apart 1 1/2″ CTC
- Connections: (2) 1/8″ Dia. Studs
