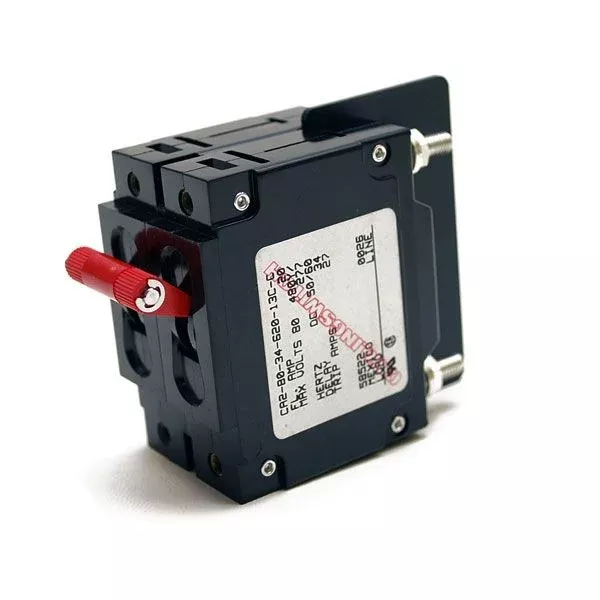

Boat part number 1004723 is a new toggle circuit breaker from Carling, part number CA2-B0-34-620-13C-C .
This 2 pole 2 throw breaker is constructed out of black marine grade plastic with a red toggle and measures approximately 1 1/2″ W x 2 3/4″ H x 3 3/8″ D overall. Requires an approximate 1 1/2″ W x 1 3/8″ H cutout. Rated for 20 amps, max volts 80: 480Y/277, hertz DC 50/60. Mounts using (4) 1/8″ Dia. threaded holes and connects using (4) screw terminals.
Specifications:
- Part Manufacturer: Carling
- Part Number: CA2-B0-34-620-13C-C
- Material: Marine Grade Plastic
- Color: Black / White
- FL. Amp: 20
- Max Volts 80: 480Y/277
- Hertz DC: 50/60
- Delay: 34
- Trip Amps: 27
- Overall Dimensions: 1 1/2″ W x 2 3/4″ H x 3 3/8″ D
- Cutout: 1 1/2″ W x 1 3/8″ H
- Mounts: (4) 1/8″ Dia. Threaded Holes
- Connections: (4) Screw Terminals
