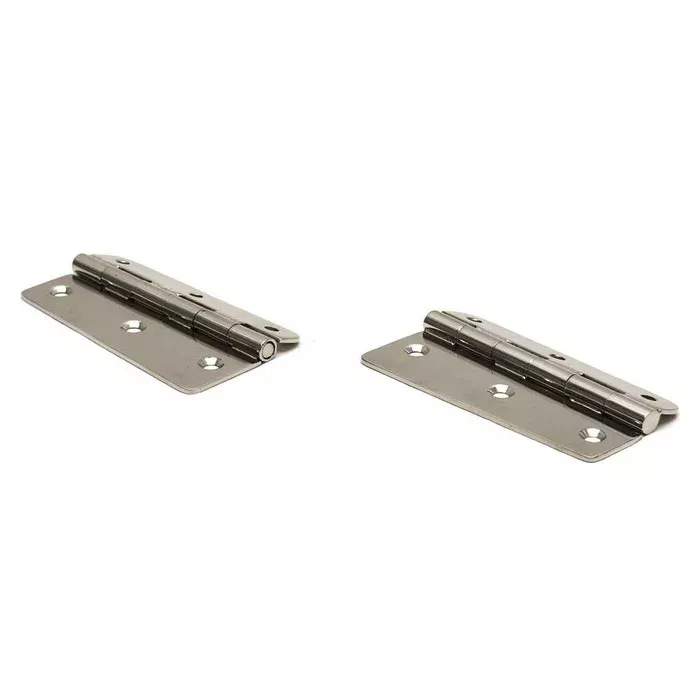

Boat part number 1103575 is a new set of 2 angled hinges from Challenger Hardware, part number 220873 . Commonly used on Rinker Boats, part number unavailable, but may be used on other boats.
These hinges are constructed out of stainless steel and each measure approximately 6″ L x 3 1/4″ W (tapered to 2 3/4″ W) x 1/2″ H overall when open. Measures 6″ L x 2 3/8″ W (tapered to 1 7/8″ W) x 7/8″ H overall when closed. Mounts using (6) 3/8″ Dia. countersunk mounting holes set apart 2 3/8″.
Tag Reads: R//220873- HINGE, 4X6 L/R
Specifications:
- Boat Manufacturer: Rinker Boats
- Part Number: Unavailable
- Part Manufacturer: Challenger Hardware
- Part Number: 220873
- Material: Stainless Steel
- Color: Silver
- Finish: Mirrored
- Overall Dimensions: 6″ L x 3 1/4″ W (tapered to 2 3/4″ W) x 1/2″ H Each
- Mounts: (6) 3/8″ Dia. Holes Each
