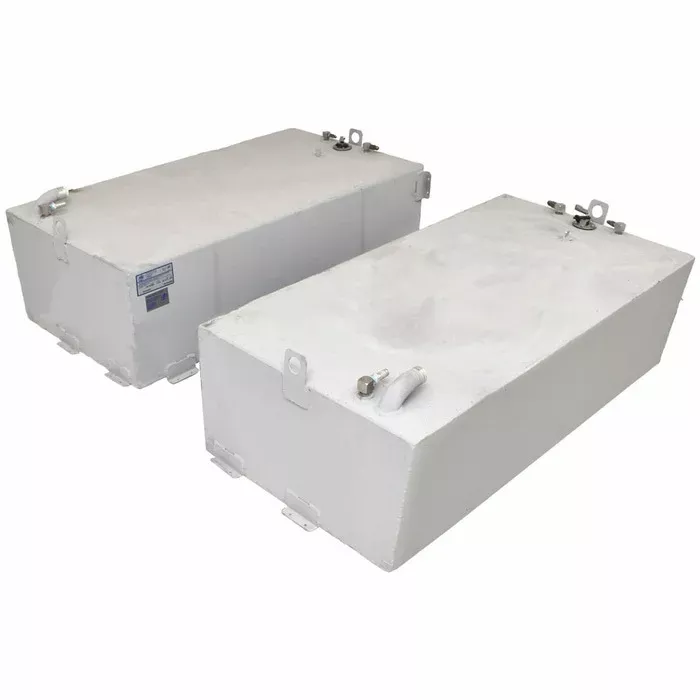

Boat part number 1115058 is a new set of (2) 73 gallon fuel gas tanks for 2013, 327 SSX Chaparral Boats, part numbers 46.00161 / 46.00162 . Manufactured by Florida Marine Tanks, part numbers FMT-73P-CHP / FMT-73S-CHP . May be used on other boats.
These fuel tanks are constructed out of light gray aluminum and have a capacity of approximately 73 gallons per manufacturer. Each tank measures approximately 50″ L x 26″ W x 14 3/4″ H overall and 51″ L x 26″ W x 17 1/4″ H overall when including the fittings. Each tank features (1) pre-installed sending unit with a standard range of 35 – 240 ohms.
Each tank has the following connections:
- (2) 5/8″ Dia. barbed
- (1) 1 1/2″ Dia. barbed
- (1) 3/8″ Dia. barbed
- (1) 2-pin male Deutsch connector
See photos for additional measurements.
Includes port and starboard fuel tank.
Please check with your local boat brand dealer for boat / brand / model / year cross-referencing compatibilities.
Specifications:
- Boat Manufacturer: Chaparral
- Model: 327 SSX
- Year: 2013
- Part Number: 46.00161 / 46.00162
- Part Manufacturer: Florida Marine Tanks
- Part Number: FMT-73P-CHP / FMT-73S-CHP
- Material: Aluminum
- Color: Light Gray
- Capacity: 73 gallons
- Wall Thickness: 0.125″
- Fuel Type: Gasoline or Diesel
- Overall Dimensions: 50″ L x 26″ W x 14 3/4″ H
- Dimensions with Fittings: 51″ L x 26″ W x 17 1/4″ H
Because of the size and/or commodity of this item, we must ship via truckline. The shown freight cost is for the LOWER 48 STATES ONLY and shipped to a business at a commercial address WITH LOADING DOCK. We can ship to your residence, or possibly a nearby terminal. We can also offer international shipping. Please call or email for a shipping quote if needed.
