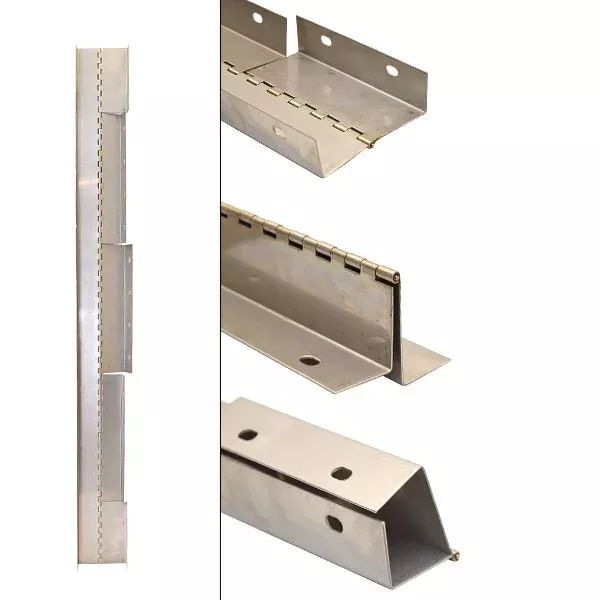

Boat part number 7200355 is a new segmented piano hinge from Chaparral Boats, commonly used on 270/276 Signature models, part number CB354048-06SS . May be used in other boats.
This 16 gauge stainless steel segmented piano hinge measures approximately 48″ L x 3 3/4″ W (3 1/8″ open) x 1 1/2″ D (2 3/4″ open). It has (5) segments on one side measuring (2) 6″ L and (3) 12″ L, with varying widths – see photos for further measurements. It mounts via (26) 1/4″ slotted mounting holes spaced various lengths apart throughout.
Specifications:
- Part Manufacturer: Chaparral Boats
- Part Number: CB354048-06SS
- Model: 270/276 Signature
- Material(s): Stainless Steel
- Overall Dimensions: 48″ L x 3 3/4″ W (3 1/8″ open) x 1 1/2″ D (2 3/4″ open)
- Thickness: 16 Gauge
- Mounts: (26) 1/4″ Slotted Mounting Holes
