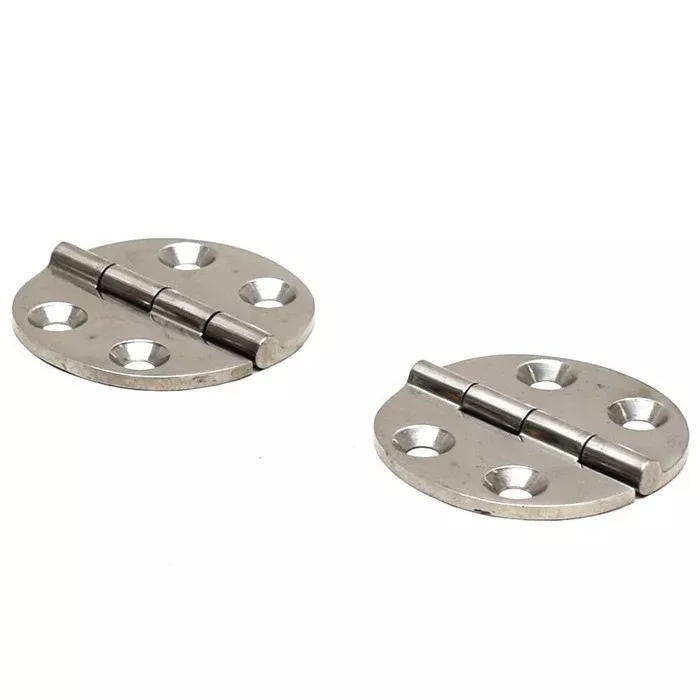

Boat part number 7202159 is a new pair of round hinges for Chaparral Boats, part number 66240-1 . May be used on other boats.
These hinges are constructed out of 8 gauge polished stainless steel. Each measure approximately 2 5/8″ L x 2 1/2″ W overall (when unfolded) and 2 1/2″ W x 1 3/8″ L (when folded). Each hinge features an approximate 3/8″ Dia. pin and mounts with (4) 1/4″ Dia. countersunk mounting holes. See photos for additional measurements.
Specifications:
- Boat Manufacturer: Chaparral
- Part Number: 66240-1
- Part Manufacturer: Unavailable
- Part Number: Unavailable
- Material: Stainless Steel
- Color: Silver
- Finish: Polished
- Overall Dimensions: 2 5/8″ L x 2 1/2″ W (When Unfolded)
- Mounts: (4) 1/4″ Dia. Holes (Each)
