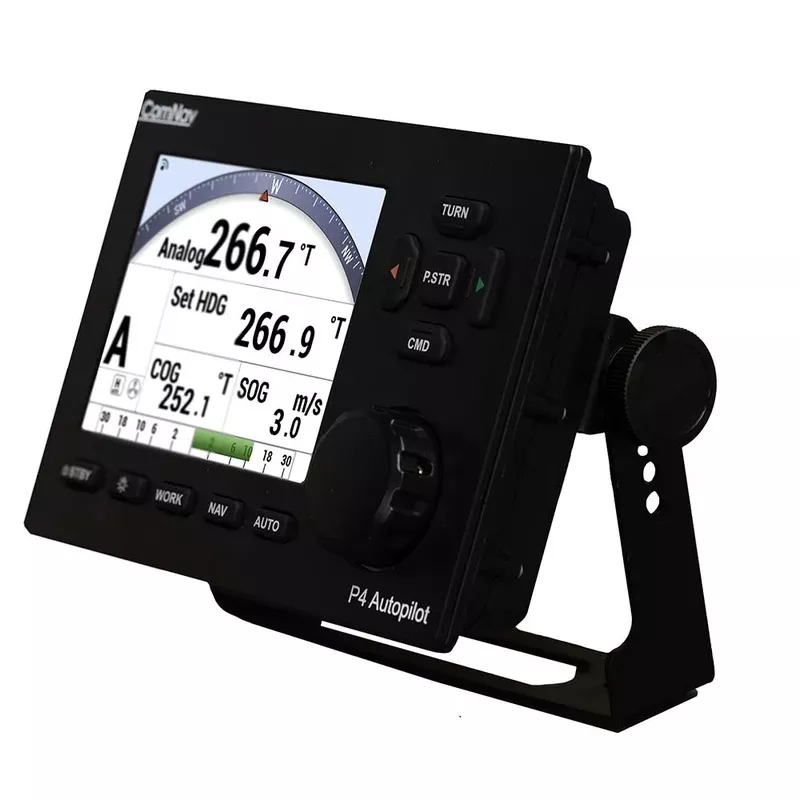

ComNav P4 Color Pack – Magnetic Compass Sensor & Rotary Feedback for Commercial Boats *Deck Mount Bracket Optional — Product
P4 Color Pack – Magenetic Compass Sensor & Rotary Feedback for Commercial Boats *Deck Mount Bracket OptionalFeatures:
- IST – Intelligent Steering Technology provides superior vessel steering capability
- ADAPTIVE steering for sea conditions and varying vessel speeds
- AUTO-SETUP – allows auto-drive detection, rudder response time, compass detection and calibration
- WORK Mode suitable for Towboats and Workboats
- NMEA 2000, ETHERNET, and NMEA 0183 interface
- Configurable for Fishing, Offshore Vessels, Workboats, Towboats and Yachts
- PRC- Proportional Rate Control feature provides gentle smooth response
- Multi-Station capability with security station lock
- SUNLIGHT viewable LED backlit 5.7” TFT LCD 640 x 480 display
- NAV Mode provide adaptive precise track steering
- ALC – Automatic Leeway Compensation for Drift, Tide & Wind
- Fully compatible with onboard instruments and steering systems
- Z-Drive interface allows 360 ͦAzimuth drive interface using +/- 10 Volts /4-20 milliamps analog signal (optional)
- Auto Thrust-assist for Dead-ahead slow or station keeping (optional)
- Multi-Language capability: English, Chinese, French, German, Norwegian, Spanish, Italian, Icelandic, and more
- Standard Mounting bracket – Flush Mount, Swivel mount bracket is optional
- IP67 Waterproof – Control Head, TS4, NF4 and WS4
- RoHS & CE compliance for EMI and RFI immunity
Additional Features:
- 9 level backlit LCD display
- Colour head gives you Red Night Vision mode for comfortable viewing in all conditions
- Pre-defined parameter sets for full or semi-displacement,planning hulls, stern drives and sailboats
- Multiple steering capability for Fast, Slow and Work modes
- Simple to use course knob with mechanical detent
- Multi-station capability with security station lock
- Automatic trim
- Adjustable yaw, turn rate and rudder settings
- PORT and STBD dodge buttons for collision avoidance
- Output for optional analog rudder angle indicator, up to 4 stations
- Fully compatible with onboard NMEA instruments and most steering systems
Specifications:
- Operating Voltage: 10 to 30 VDC
- Power Consumption:Average 0.5 Amps, 3 Amps Peak (Lower consumption capability with low backlight setting)Drive Output:20 Amps
- Network:NMEA 2000
- Navigational Interface:NMEA 0183 inputs
- NMEA 0183 Output:Heading (10x per sec), Autopilot Status (1x per sec)
- Heading Reference:Fluxgate, Magnetic Compass, NMEA Compass or Heading Sensor GNSS compass
- Course Resolution:1°
- Course Detection:0.5°
- Control Head: Sunlight viewable high contrast LCD is 5.7” TFT LCD 640 x 480 VGA high resolution display
P4 Color Kit-Commercial Marine Magnetic Compass Sensor and Rotation Feedback* Optional function of deck mounting bracket: IST intelligent steering technology provides excellent…
SKU: NVN-72913
MPN: 10140007
UPC:
