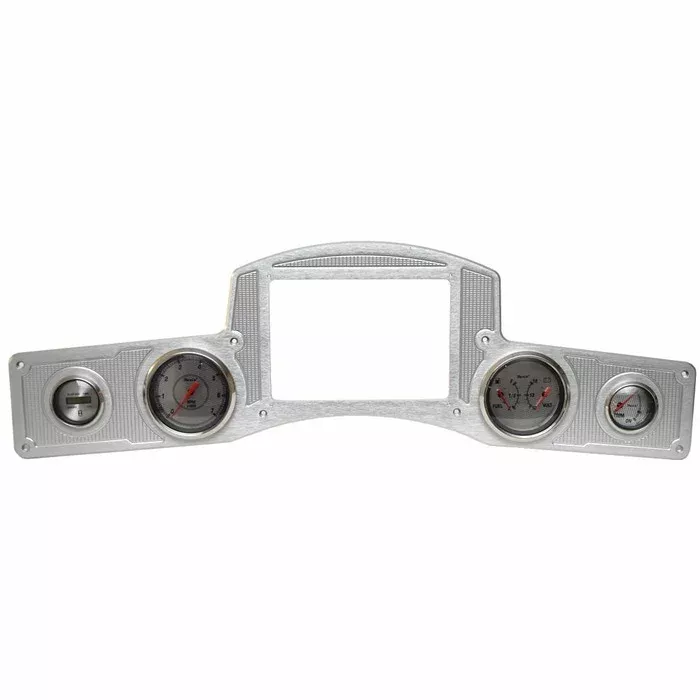

Boat part number 1114721 is a new gauge dash panel for a Crest Caribbean LX 230/250 pontoon boat, part number 501099 .
This dash panel is constructed out of 1/4″ thick aluminum with a textured pattern and brushed finish. Measures approximately 28 1/4″ L x 9″ H x 4 1/2″ D overall. Hosts and approximate 4 7/8″ H x 7 3/8″ W cutout in the face. Uses (1) 6-pin male, (1) 4-pin female, and (1) 4-pin male connections. Mounts with (8) 3/16″ dia. holes set around the perimeter.
This dash panel features (4) pre-installed Faria gauges. Each of these red halogen illuminated gauges feature a silver colored bezel, domed lens, checkered silver face, black lettering numerals and accents, and red needles.
This panel features the following gauges:
- (1) Hours Meter | MH0212A
- (1) 7000 RPM Tachometer | TC5035B | Set up for 4/6/8/10/12 Mercury Outboard Engines
- (1) Fuel / Volt Multifunction Gauge | GF0156A
- (1) Trim Gauge | GP5065B | Set up for Mercury Engines
Specifications
- Boat Manufacturer: Crest Pontoons
- Model: Caribbean LX 230/250
- Year: Unavailable
- Part Number: 501099
- Material: Aluminum
- Finish: Textured | Brushed
- Color: Silver
- Cutout: 4 7/8″ H x 7 3/8″ W
- Overall Dimensions: 28 1/4″ L x 9″ H x 4 1/2″ D
- Cutout: 4 7/8″ H x 7 3/8″ W
- Connections: (1) 6-Pin Male | (1) 4-Pin Female | (1) 4-Pin Male
- Mounts: (8) 3/16″ Dia. Holes Set Around the Perimeter
- Set up for 4/6/8/10/12 Mercury Outboard Engines
