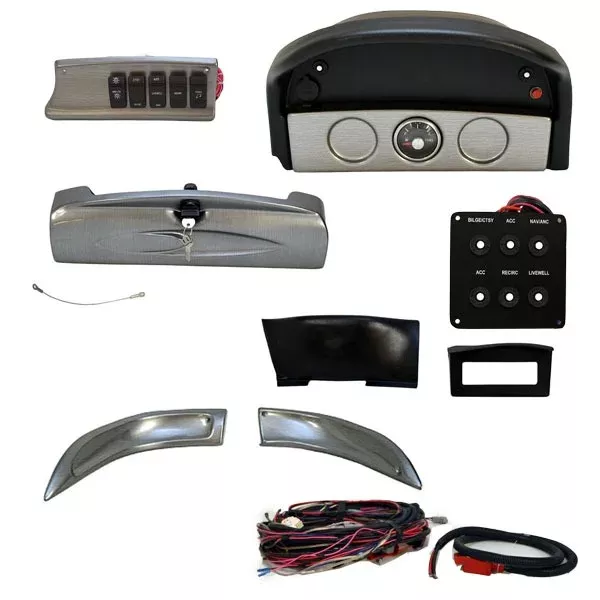

Boat part number 8301534 is a new dash panel kit for a Crestliner Super Hawk, part number 20006263 .
This dash panel kit includes the following:
- (1) Blank Gauge Panel
- (1) Switch Panel
- (1) Breaker Panel
- (1) Glove Compartment Door
- (2) Trim Panels
- Wiring Harness
- Trolling Motor Harness with plug panel
Gauge Panel
This panel is constructed out of black plastic with a brushed gray accent piece. Measures approximately 14 1/2″ W x 8 1/4″ H x 4 1/4″ D overall. Features (1) Faria fuel gauge with silver colored bezel, black face, domed lens, light gray lettering and numerals, and red needle. Hosts red push-to-sound horn button, 12 volt power receptacle and uses (1) 9-pin female connection.
Switch Panel
This panel is constructed out of gray plastic with a brushed finish. Measures approximately 10″ W (tapering to 9 1/4″ on top) x 4″ H overall. Hosts (1) 13-pin female, (1) 5-pin male, (1) and 13-pin male connections.
Features the following rocker switches:
- (1) On/Off/On “Nav Lts”
- (1) On/Off/On “CTSY / Bilge”
- (1) On/Off/On “Auto / Man Livewell”
- (1) On/Off “Recirc”
- (1) On/Off “Stereo”
Breaker Panel
Constructed out of black plastic, this panel measures approximately 4″ W x 4″ H overall. Hosts (1) 15-pinfemale connection.
Features the following Push-to-Reset breakers:
- (1) Bilge / CTSY
- (2) ACC
- (1) Nav / Anc
- (1) Recirc
- (1) Livewell
Glove Box Door
This door is constructed out of brushed gray plastic. Measures approximately 18 1/4″ W x 5 1/2″ H x 4 3/4″ D overall. Features locking latch with (2) keys. Mounts with a hinge that hosts (6) 1/8″ dia. mounting holes set apart 3 1/8″ center on center.
Tag reads: CRSTLNR K09 SUPRHWK STD BPTR 12P
Specifications:
- Boat Manufacturer: Crestliner
- Model: Super Hawk
- Part Number: 20006263
- Material: Plastic
- Colors: Black | Brushed Gray
