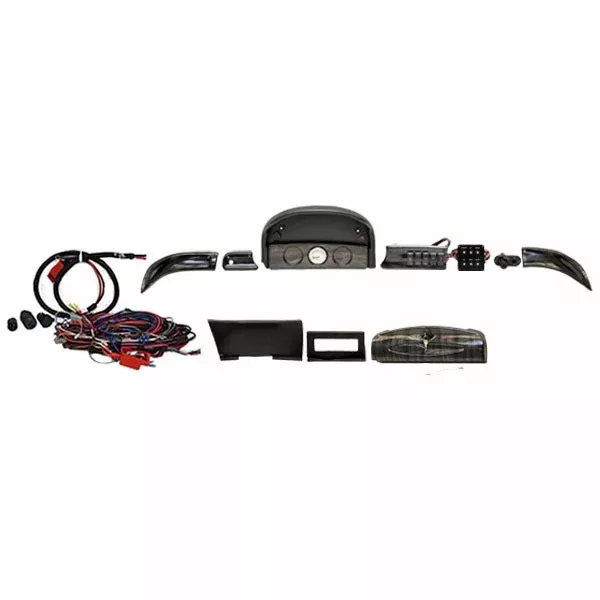

Boat part number 8301828 is a new dash panel kit for a Crestliner Sportfish boat, part number 2006266 .
This panel kit includes the following:
- (1) Gauge Panel
- (1) Rocker Switch Panel
- (1) Breaker Panel
- (1) Glove Box Door
- (1) Trolling Motor Plug Panel
- (1) Blank Ignition Panel
- (2) Bowed Panels
- (1) Stereo Panel w/ Cutout
- (1) Backing Panel
Each of these panels are constructed out of marine grade plastic with a graywood pattern.
Gauge Panel
Measures approximately 14 3/8″ W x 8 1/2″ H x 6 1/2″ D overall. Features (1) Faria fuel gauge with silver bezel, white face, domed lens, black lettering and numerals, and black needle. Hosts (1) 12 volt receptacle, (2) push-to-reset breakers, and (1) push button Horn.
Rocker Switch Panel
Measures approximately 10″ W x 3 7/8″ H x 5″ D overall. Uses (1) 9-pin male, (1) 15-pin female, and (1) 15-pin male connections.
Features the following rocker switches:
- On/Off/On “Nav Anc Lts.”
- On/Off/On “Ctsy Bilge Lts”
- On/Off/On “Auto Main Livewell”
- On/Off “Recirc”
- On/Off “Stereo”
Breaker Panel
Measures approximately 4″ W x 4″ H and uses (1) 15-pin male connection.
Features (6) push-to-reset breaker switches labeled as follows:
- Bilge/Csty
- Acc
- Nav/Anc
- Acc
- Recirc
- Livewell
Glove Box Door
Measures approximately 18 1/4″ L x 5 1/2″ H x 5″ D overall and includes a locking Southco latch with (2) keys.
Trolling Motor Plug Panel
Measures approximately 5″ L x 2″ H x 3″ D overall. Features trolling motor switch with (1) 2-pin female and (1) 3-pin female connections and (1) momentary On/Off momentary On “Tilt Up Down” toggle switch.
Blank Ignition Panel
Measures approximately 6 1/2″ L x 3 1/2″ H x 1 1/8″ D overall with 7/8 Dia. cutout.
Bowed Panels
Each measures approximately 18″ L x 3 1/2″ H x 1 1/8″ D overall.
Stereo Panel
Measures approximately 10″ L x 5″ H x 8″ D overall with a 7 1/4″ L x 2 1/8″ H cutout.
Backing Panel
Measures approximately 17 1/4″ L x 7 1/4″ H overall
Sold as a kit.
Specifications:
- Boat Manufacturer: Crestliner
- Model: Sportfish
- Year: Unavailable
- Part Number: 2006266
- Material: Marine Plastic
- Color: Graywood
