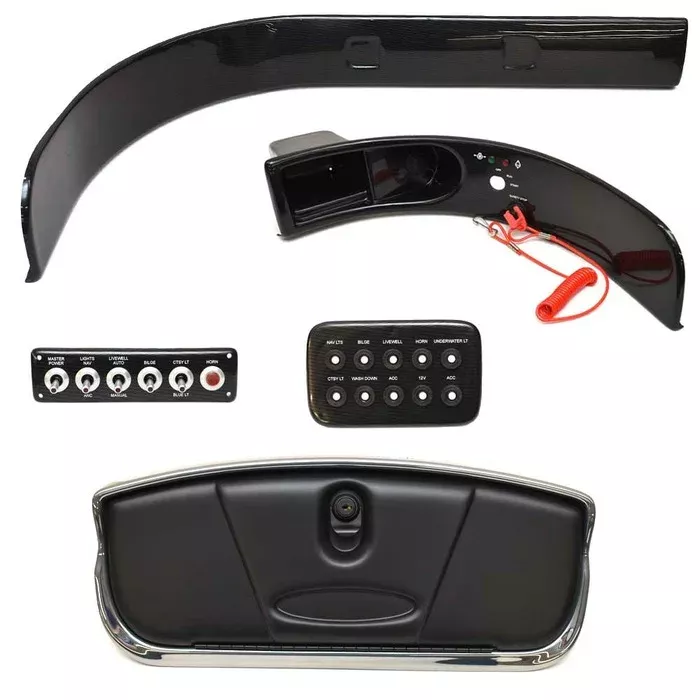

Boat part number 8304850 is a new OEM 5-piece dash panel kit for 2017, 2050 / 2250 Authority Crestliner Boats, part number 2244198 .
Kit includes the following:
- Glove Box Panel
- Blank Ignition Panel
- Switch Panel
- Breaker Panel
- Port Console Accent Panel
Glove Box Panel
This glove box panel is constructed out of matte black plastic with polished silver plastic trim. Features locking latch with (2) keys. Measures approximately 20″ W x 8 3/4″ H overall.
Blank Ignition Panel
This panel is constructed out of spun graphite plastic with a glossy finish. It measures approximately 13″ W x 4 1/2″ H x 19 1/2″ D overall.
Features the following:
- 3 3/4″ W x 2 1/4″ H x 4 1/2″ D Storage Cubby
- 12V Receptacle
- Green Indicator Light
- Red Indicator Light
- 3/4″ Dia. Ignition Cutout
- Kill Switch w/ Safety Lanyard
Switch Panel
This panel is constructed out of spun graphite plastic with a glossy finish. It measures approximately 7 3/8″ W x 2″ H overall.
This panel features the following pre-installed red illuminated toggle switches:
- Master Power | ON/OFF
- Navigation/Anchor Lights | ON/OFF/ON
- Auto/Manual Livewell | ON/OFF/ON
- Bilge | ON/OFF
- Courtesy Lights/Blue Lights | ON/OFF/ON
- Horn Red Push Button | Momentary ON/OFF
Breaker Panel
This panel is constructed out of spun graphite plastic with a glossy finish. It measures approximately 6″ W x 3 3/4″ H overall.
This panel features the following pre-installed push button breaker switches:
- Navigation Lights
- Bilge
- Livewell
- Horn
- Underwater Lights
- Courtesy Lights
- Wash Down
- (2) Accessory
- 12V
Port Console Accent Panel
This panel is constructed out of spun graphite plastic with a glossy finish. It measures approximately 29 1/2″ W x 4″ H x 16″ D overall.
See photos for measurements.
Please check with your local boat brand dealer for boat / brand / model / year cross-referencing compatibilities.
Tag reads: ELEC PKG, MEP HONDA 20/2250 AUTHORITY 17
Specifications:
- Boat Manufacturer: Crestliner
- Model: 2050 Authority / 2250 Authority
- Year: 2017
- Part Number: 2244198
- Part Manufacturer: Marine Electrical Products
- Material: Plastic
- Color: Spun Graphite / Black / Silver
- Finish: Glossy
