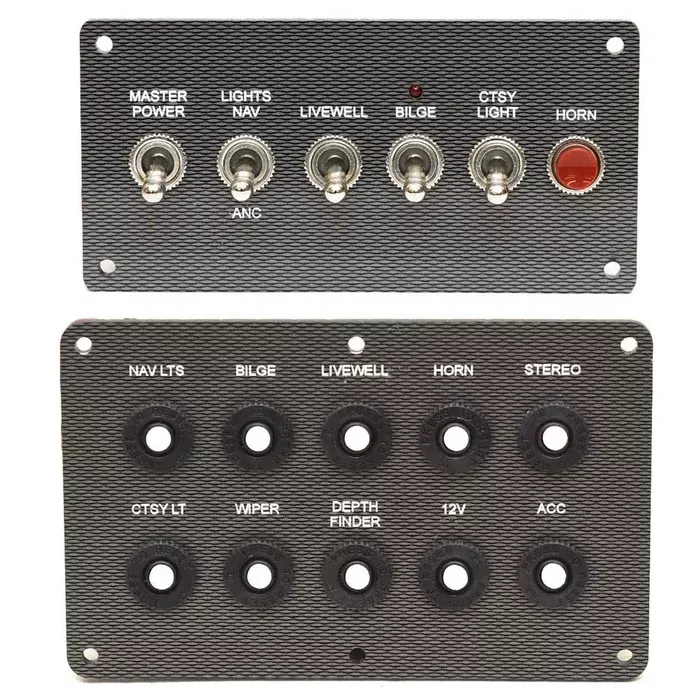

Boat part number 8304800 is a new set of (2) switch panels for 1850 Commander Crestliner Boats, part number 2244204 .
Set includes the following:
- (1) Toggle Switch Panel
- (1) Breaker Switch Panel
Toggle Switch Panel
This switch panel is constructed out of black and charcoal plastic with a wave pattern and glossy finish.
- Overall Dimensions: 5 1/2″ W x 2 3/4″ H
- Mounts: (4) 1/8″ Dia. mounting holes
Features the following switches:
- Master Power | ON/OFF
- Navigation/Anchor Lights | ON/OFF/ON
- Livewell | ON/OFF
- Bilge w/ Red Indicator Light | ON/OFF
- Courtesy Lights | ON/OFF
- Horn Red Push Button | Momentary ON/OFF
Breaker Switch Panel
This switch panel is constructed out of black and charcoal plastic with a wave pattern and glossy finish.
- Overall Dimensions: 6″ W x 3 3/4″ H
- Mounts: (6) 1/8″ Dia. mounting holes
Features the following push-to-reset breaker switches:
- Navigation Lights
- Bilge
- Livewell
- Horn
- Stereo
- Courtesy Lights
- Wiper
- Depth Finder
- 12V
- Accessory
Please check with your local boat brand dealer for boat / brand / model / year cross-referencing compatibilities.
Specifications:
- Boat Manufacturer: Crestliner
- Model: 1850 Commander
- Part Number: 2244204
- Material: Plastic
- Color: Black / Charcoal
- Pattern: Wave
- Finish: Glossy
