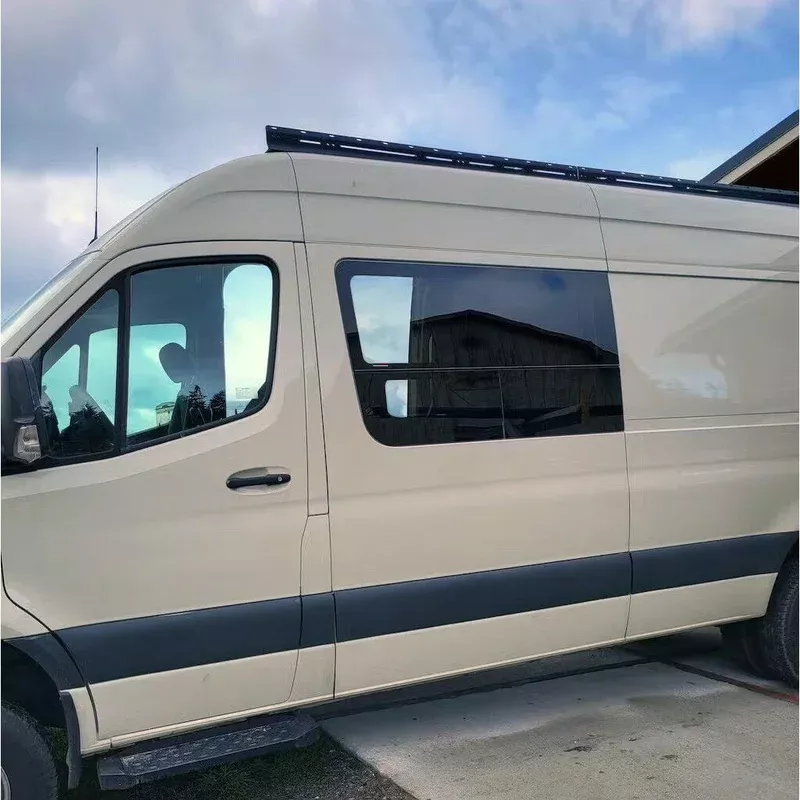

The CRL FW621L Mercedes Sprinter T-Vent Window (Driver Side Forward)fromNomadic Supply Company® is configured to fit within the OEM stampings and provide a customized OEM look. This great feature eliminates the time-consuming efforts of laying out where the window will be installed. Just line it up to cut, starting on the upper inner dimple, and follow along the OEM stamping.Our CRL FW621L Mercedes Sprinter T-Vent Window (Driver Side) has a T-handle that allows you to crank out a glass panel to provide ventilation to the rear of your Van.Our CRL FW621L Mercedes Sprinter T-Vent Window (Driver Side) is for the driver forward position panel ONLY (not for a driver sliding door).We recommend securing the CRL FW621L Mercedes Sprinter T-Vent Window (Driver Side) against break-ins with our:Pikavo CRLSecure Mercedes Sprinter CRL Window Security Screen
CRL FW621L Mercedes Sprinter T-Vent Window (Driver Side Forward) Specifications:
- Direct-Fit (High Roof / Low Roof Models)
- Driver Side Forward * Not Compatible with Driver Side Sliding Door
- Installation Type = Clamp Ring
- Manufacturer Country = USA
- Manufacturer Warranty = 30-Day
- Outer Dimension: 55-3/8” W x 30-1/4”H
- Frame Dimension: 50” W x 24-7/8” H
- Front Ventilation Opening: 21-7/8” W x 5-3/4” H
- Rear Ventilation Opening: 20” W x 5-3/4” H
- Fits any 2007+ Mercedes-Benz Sprinter van
- Warranty: 30 Days
- Glass Color = Solar Privacy Glass
- Glass UV Rating = 28%
- Tilt Out Measurement: 9.5″
- Part Number: CRL FW621L
- Fits 2007+ 144″ Mercedes Sprinter and 170″WB models
- Has two crank-out, opening bottom panels with detachable screens
- Has a clamp (trim) ring, so does not require adhesive, primer or sealant
- Uses tempered glass for maximum safety and strength
- Is tested to ANSI Z26.1 and FMVSS 205 safety standards
- Uses factory stampings for cut lines
- Proudly made in the USA by CR Laurence.
- Note: This window does not fit a driver-side sliding door.
Camper Van Window Manufacturer Warranty and Manufacturer Defect Policy:
CRL FW621L Mercedes Sprinter T-Vent Window (Driver Side Forward) Camper Van Window Warranty and Defect Policy
CRL FW621L Mercedes Sprinter T-Vent Window (Driver Side Forward) Documents:
CRL FW621L Mercedes Sprinter T-Vent Window (Driver Side Forward) Universal Clamp-Ring Camper Van Installation Instructions
