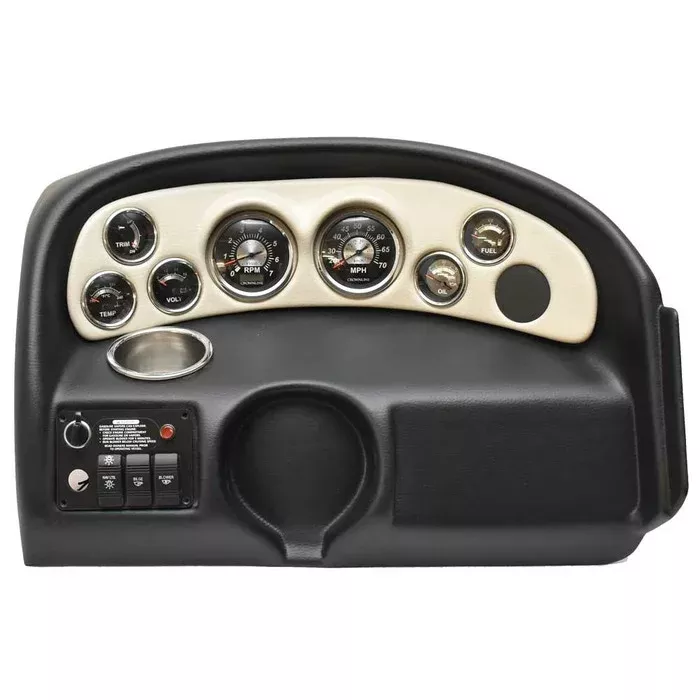

Boat part number 7700329 is a new console shroud dash panel for Crownline Boats, part number 40678 . Manufactured by BH Electronics, part number AD-331-229D .
This dash panel is constructed out of black and cream faux leather vinyl over plastic. It measures approximately 25″ W x 17 3/4″ H x 11 1/4″ D overall.
This panel has (7) pre-installed Sterling Silver/Black gauges from Teleflex Marine. Each gauge has a domed lens, silver bezel, orange/black needle, and white graphics.
This panel features the following gauges:
- Temperature | P/N: 67020F
- Trim | P/N: 67023F | Mercury engines
- Volt Meter | P/N: 67019F
- Tachometer w/ Digital Display | P/N: 67017F | Gasoline | 4/6/8 cylinder inboard, 2/3/4/5/6 pole outboard
- Speedometer | P/N: 66970F | Pitot tubing
- Oil Pressure | P/N: 67022F
- Fuel Level | P/N: 67021F
This panel also includes the following:
- Stainless Steel Cup Holder
- 12V Receptacle
- Red Push Button
- Navigation/Anchor Lights Red Illuminated Rocker Switch | ON/OFF/ON
- Bilge Red Illuminated Rocker Switch | ON/OFF
- Blower Red Illuminated Rocker Switch | ON/OFF
- Fuse Panel
There are the following connections:
- (1) 8-pin male
- (1) 8-spade male
- (8) female bullet
- (2) male bullet
Note: Please check with your local boat brand dealer for boat / brand / model / year cross-referencing compatibilities.
Specifications:
- Boat Manufacturer: Crownline
- Part Number: 40678
- Part Manufacturer: BH Electronics
- Part Number: AD-331-229D
- Material: Vinyl / Plastic
- Color: Black / Cream
- Overall Dimensions: 25″ W x 17 3/4″ H x 11 1/4″ D
- Fuel: Gasoline
- Set Up For: 4/6/8 cylinder inboard, 2/3/4/5/6 pole outboard
- Used on These Engines: Mercury
