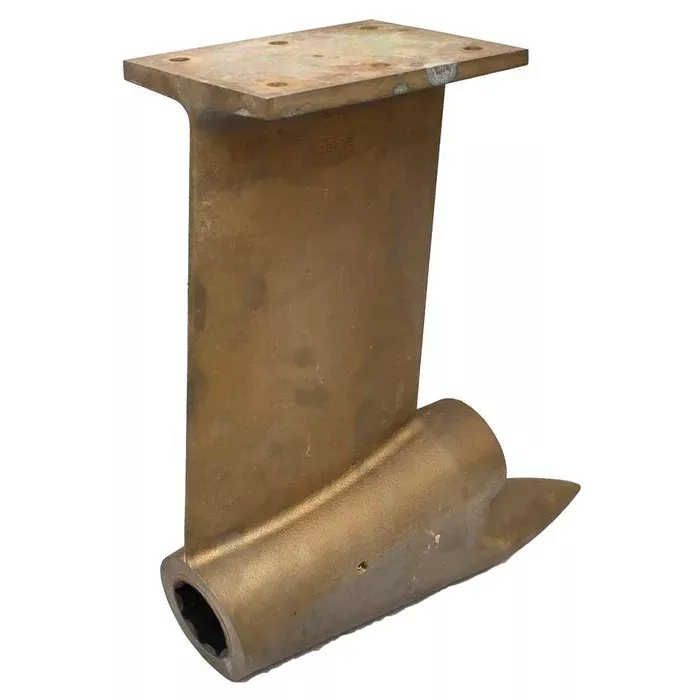

Boat part number 1098360 is a new propeller shaft strut for Cruisers Yachts, part number V1923100 .
This propeller shaft strut is constructed out of heavy duty bronze. The shaft has an approximate 2″ inner diameter and has an 8-spline rubber bushing. It measures approximately 15″ L x 6″ W x 16 1/4″ H overall. The base measures approximately 8″ L x 6″ W and has (6) 3/8″ Dia. countersunk mounting holes. Includes mounting plate.
See photos for additional measurements.
Stamp on part reads 02125 .
Specifications:
- Boat Manufacturer: Cruisers
- Part Number: V1923100
- Part Manufacturer: Unavailable
- Material: Bronze
- Color: Bronze
- Shaft Diameter: 2″ ID
- Splines: 8
- Overall Dimensions: 15″ L x 6″ W x 16 1/4″ H
- Base Dimensions: 8″ L x 6″ W
- Mounts: (6) 3/8″ Dia. countersunk mounting holes
