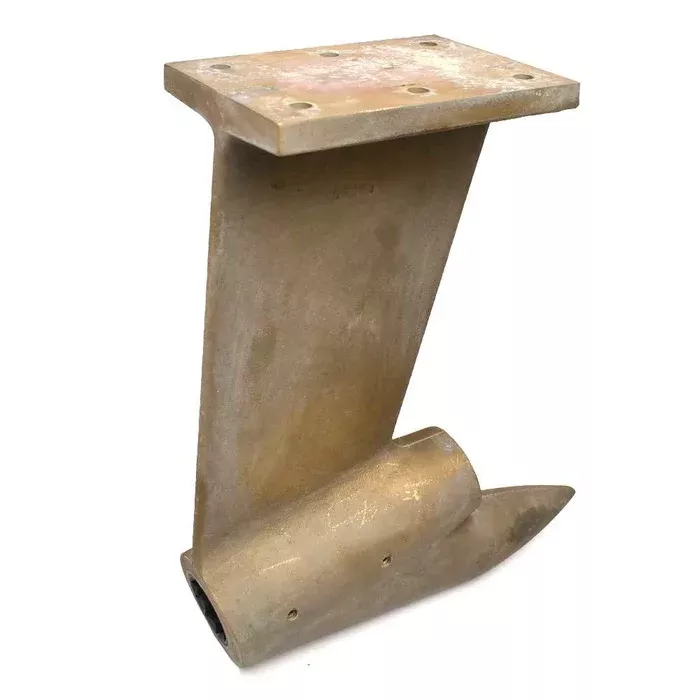

Boat part number 1098352 is a new propeller shaft strut for Cruisers Yachts, part number V2186100 .
This propeller shaft strut is constructed out of heavy duty bronze. The shaft has an approximate 1 3/4″ inner diameter and has an 10-spline rubber bushing. It measures approximately 13″ L x 6″ W x 15 1/2″ H overall. The base measures approximately 8″ L x 6″ W and has (6) 3/8″ Dia. countersunk mounting holes. Includes mounting plate.
See photos for additional measurements.
Stamp on part reads 02159 .
Specifications:
- Boat Manufacturer: Cruisers
- Part Number: V2186100
- Part Manufacturer: Unavailable
- Material: Bronze
- Color: Bronze
- Shaft Diameter: 1 3/4″ ID
- Splines: 10
- Overall Dimensions: 13″ L x 6″ W x 15 1/2″ H
- Base Dimensions: 8″ L x 6″ W
- Mounts: (6) 3/8″ Dia. countersunk mounting holes
