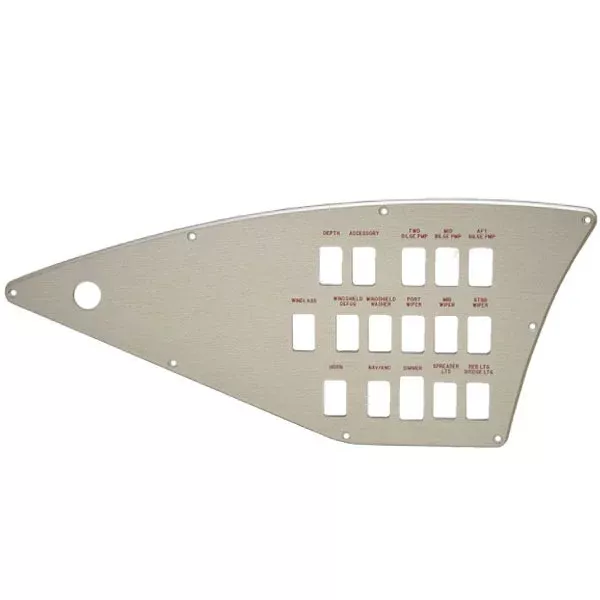

Boat part number 1056411 is a new blank switch panel from Cruisers Yachts, part number V2105000 .
This blank panel is constructed out of silver colored plastic, and measures approximately 22″ W x 9 1/2″ H x 1/4″ Thick overall. The wiring on the back illuminates the labels. The blank circular cutout at one end measures approximately 1 1/8″ in diameter. Mounts with (8) 3/16″ holes around perimeter.
Features (16) 7/8″ W x 1 1/2″ H cutouts with the following back-lit labels:
- Depth
- Accessory
- Fwd Bilge Pump
- Mid Bilge Pump
- Aft Bilge Pump
- Windlass
- Windshield Defog
- Windshield Washer
- Port Wiper
- Mid Wiper
- Stbd Wiper
- Horn
- Nav/Anc
- Dimmer
- Spreader Lts
- Red Lts/Bridge Lts
Specifications:
- Boat Manufacturer: Cruisers Yachts
- Part Number: V2105000
- Material: Plastic
- Color: Silver
- Finish: Metallic
- Cutouts: (16) 7/8″ W x 1 1/2″ H
- Overall Dimensions: 22″ W x 9 1/2″ H x 1/4″ Thick
- Mounts: (8) 3/16″ Holes Around Perimeter
