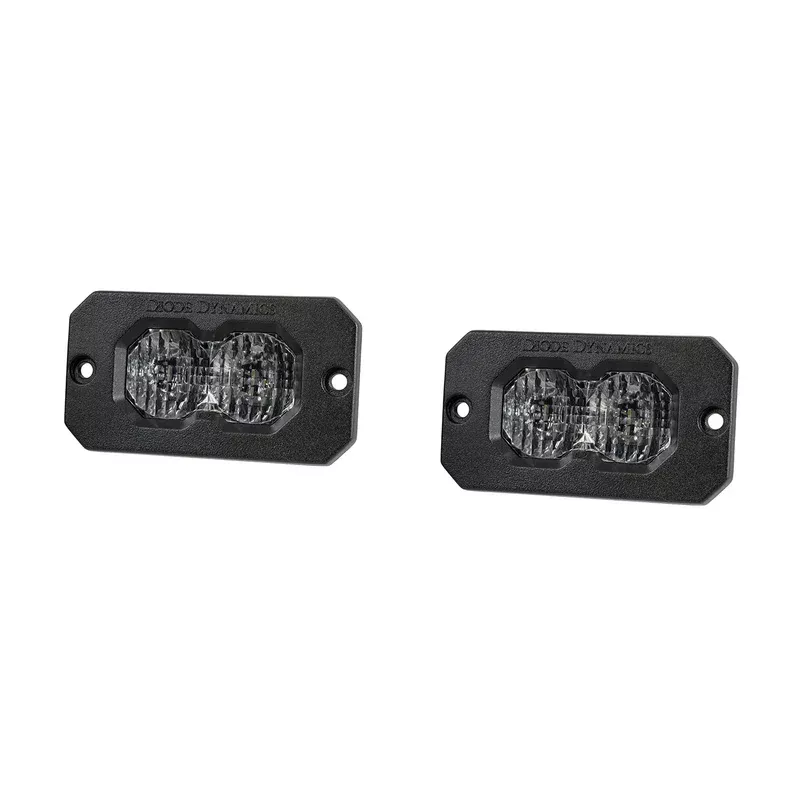

The Diode Dynamics C2 2.0 Max LED Pod White Combo/Driving Flush RBL (Pair) (DD8130P) from Nomadic Supply Company® is a matched pair of fully re-engineered compact Max 2-inch LED pods from Diode Dynamics featuring a redesigned 55°×20° Combo/Driving beam pattern in cool white 6000K that delivers a practical blend of driving distance & usable width — the all-purpose workhorse of the C2 2.0 lineup & ideal for roof racks, ditch lights & A-pillars. At 3,900 raw lumens per pair — powered by Osram HX Boost LEDs — this is the most powerful 2-inch LED pod on the market.
Diode Dynamics C2 2.0 Max LED Pod White Combo/Driving Flush RBL (Pair) (DD8130P) Features:
- Re-Engineered TIR Optics. The C2 2.0 uses Diode Dynamics’ patented TIR (Total Internal Reflection) optics, redesigned from the ground up to deliver up to 120% more intensity than the original C2 — capturing virtually all of the LED’s output & directing it precisely where you need it with no wasted light or glare.
- Combo/Driving Beam Pattern. The redesigned Combo/Driving optic uses a uniform pillow-optic surface to cast a 55°×20° rectangular beam pattern, solving the visual mismatch of side-by-side pods & delivering a practical blend of width & driving distance. The all-around pattern for ditch lights, A-pillars & roof racks.
- Cool White Output. The 6000K Cool White emitter delivers a crisp, bright white beam for maximum road illumination. All C2 2.0 pods use the same 6000K emitter regardless of color — output color is set by the lens — making it easy to swap between white & yellow with a simple lens change.
- Max Power Level — 3,900 Raw Lumens. The Max tier uses the same Osram HX Boost LEDs found in Diode Dynamics’ highest-output SS3 pods, pushing 3,900 raw lumens from a 2-inch housing — the most powerful 2-inch LED pod on the market. A redesigned copper-core circuit board & upgraded thermal management make this extreme output possible without sacrificing reliability.
- Flush Mount. The Flush mount integrates the pod directly to the mounting surface for a sleeker, lower-profile appearance with no visible adjustment bracket extending outward. Three mounting-hole positions allow vertical height adjustment while keeping the pod flush-mounted on light bars, roof racks & surface mounts.
- Red Backlight (RBL). The Red backlight fully illuminates the TIR optic housing in red when the pod is powered on, matching OEM taillights for a factory-integrated look on rear-facing pods & providing enhanced rear visibility. Ideal for pods mounted on tailgates, roof racks & hitch mounts facing rearward.
- CrossLink Compatible. The C2 2.0 is compatible with Diode Dynamics’ patent-pending CrossLink system, allowing multiple pods to link together seamlessly into a custom lightbar configuration — no special adapters required. CrossLink mounting accessories are available separately.
- Swappable Optics & Colors. All C2 2.0 pods share the same 6000K emitter & lens mount — switching beam pattern or light color is a simple lens swap with no tools. Snap-on covers in clear, amber, yellow, smoked & black are available separately for added protection or customization.
- Proven Reliability. Every C2 2.0 is tested to SAE standards for moisture intrusion, vibration & long-term operation from -40°F to 185°F — the same standards applied to factory automotive components — then validated on trail & on the racetrack by Diode Dynamics’ own team.
- Simple Wiring. Each pod ships with a 6″ pigtail & bare leads terminating in a Deutsch DT-style connector for a weatherproof, vibration-resistant connection. Compatible with all Diode Dynamics Stage Series wiring harnesses.
- Quantity. This listing is for a matched pair (2) of C2 2.0 LED pods. Wiring harnesses & mounting hardware sold separately.
- Limited Lifetime Warranty. Backed by Diode Dynamics’ limited lifetime warranty. Designed, engineered & assembled in St. Charles, Missouri, USA using globally sourced components — SAE-compliant from the factory.
Diode Dynamics C2 2.0 Max LED Pod White Combo/Driving Flush RBL (Pair) (DD8130P) Specifications:
- Power Level: Max — 3,900 raw lumens (Osram HX Boost LEDs)
- Color Output: Cool White (6000K emitter)
- Beam Pattern: Combo/Driving — 55°×20°
- Backlight: Red (RBL)
- Mounting: Flush mount
- Input Voltage: 9–30V
- Operating Temperature: -40°F to 185°F
- Connector: Deutsch DT-style, 6″ pigtail with bare leads
- Warranty: Limited Lifetime
- Quantity: 2 pods (matched pair)
- Part Number: DD8130P
Diode Dynamics C2 2.0 Max LED Pod White Combo/Driving Flush RBL (Pair) (DD8130P) Documents:
Diode Dynamics C2 2.0 Max LED Pod White Combo/Driving Flush RBL (Pair) (DD8130P) Info GuideDiode Dynamics Stage Series C2 2.0 Flush Mount Installation Guide
