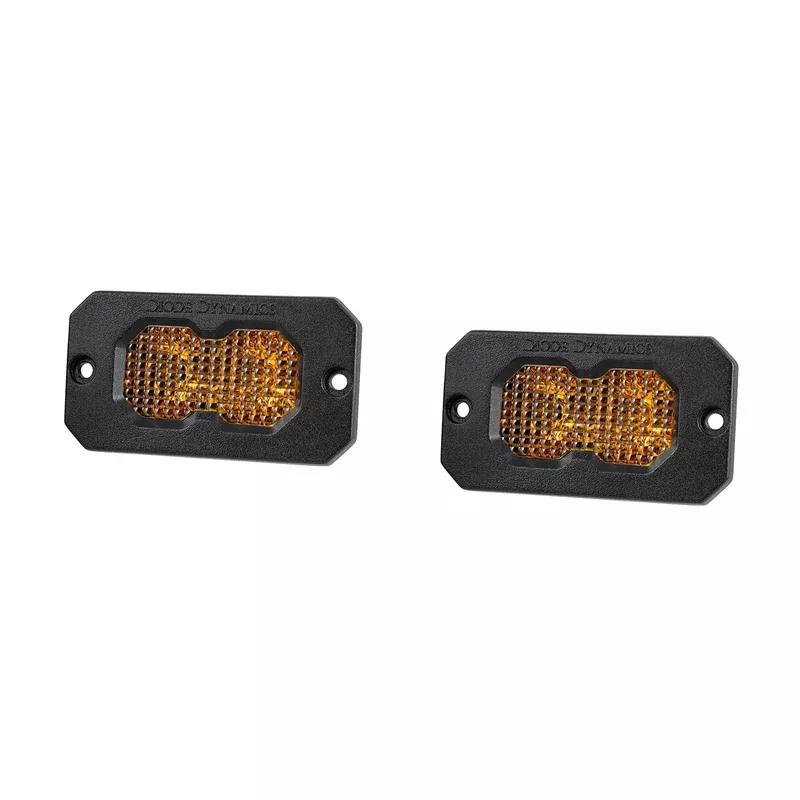

The Diode Dynamics C2 2.0 Pro LED Light Pod Yellow Flood Flush ABL (Pair) (DD8125P) from Nomadic Supply Company® is a matched pair of fully re-engineered compact Pro 2-inch LED pods from Diode Dynamics that throw a broad 70°×45° flood of selective yellow light — ideal for worksites, campsites, trailers, reverse-light applications & low-speed off-road use where wide, even coverage matters most. Built on a new copper-core circuit board with redesigned TIR optics, the C2 2.0 delivers up to 120% more intensity than the original C2 in the same compact 2-inch form factor.
Diode Dynamics C2 2.0 Pro LED Light Pod Yellow Flood Flush ABL (Pair) (DD8125P) Features:
- Re-Engineered TIR Optics. The C2 2.0 uses Diode Dynamics’ patented TIR (Total Internal Reflection) optics, redesigned from the ground up to deliver up to 120% more intensity than the original C2 — capturing virtually all of the LED’s output & directing it precisely where you need it with no wasted light or glare.
- Flood Beam Pattern. The Flood beam produces uniform, even illumination with a broad 70°×45° spread using advanced pillow optics on the outer lens surface — a true optically-designed coverage pattern, not just a diffused spotlight. Perfect for backup lights, trailers, campsites, worksites & low-speed off-road applications.
- Selective Yellow Output. Selective Yellow output is produced by pairing the same 6000K Cool White emitter with a yellow lens, creating enhanced-contrast illumination that cuts through fog, rain & dust more effectively than white for forward-facing applications. Swapping to white requires only a lens change — no new pod needed.
- Pro Power Level. The Pro tier steps up total LED output for a noticeable real-world boost in brightness over the Sport, using the same automotive-grade emitters & redesigned TIR optics. Serious illumination for demanding applications — trail riding, jobsites & expedition builds where more light means more safety.
- Flush Mount. The Flush mount integrates the pod directly to the mounting surface for a sleeker, lower-profile appearance with no visible adjustment bracket extending outward. Three mounting-hole positions allow vertical height adjustment while keeping the pod flush-mounted on light bars, roof racks & surface mounts.
- Amber Backlight (ABL). The Amber backlight fully illuminates the TIR optic housing in amber when the pod is powered on, adding a distinctive look that complements OEM marker lights & forward-facing daytime running applications. Ideal for pods mounted on bumpers, ditch brackets & roof racks facing forward.
- CrossLink Compatible. The C2 2.0 is compatible with Diode Dynamics’ patent-pending CrossLink system, allowing multiple pods to link together seamlessly into a custom lightbar configuration — no special adapters required. CrossLink mounting accessories are available separately.
- Swappable Optics & Colors. All C2 2.0 pods share the same 6000K emitter & lens mount — switching beam pattern or light color is a simple lens swap with no tools. Snap-on covers in clear, amber, yellow, smoked & black are available separately for added protection or customization.
- Proven Reliability. Every C2 2.0 is tested to SAE standards for moisture intrusion, vibration & long-term operation from -40°F to 185°F — the same standards applied to factory automotive components — then validated on trail & on the racetrack by Diode Dynamics’ own team.
- Simple Wiring. Each pod ships with a 6″ pigtail & bare leads terminating in a Deutsch DT-style connector for a weatherproof, vibration-resistant connection. Compatible with all Diode Dynamics Stage Series wiring harnesses.
- Quantity. This listing is for a matched pair (2) of C2 2.0 LED pods. Wiring harnesses & mounting hardware sold separately.
- Limited Lifetime Warranty. Backed by Diode Dynamics’ limited lifetime warranty. Designed, engineered & assembled in St. Charles, Missouri, USA using globally sourced components — SAE-compliant from the factory.
Diode Dynamics C2 2.0 Pro LED Light Pod Yellow Flood Flush ABL (Pair) (DD8125P) Specifications:
- Power Level: Pro
- Color Output: Selective Yellow (6000K emitter, Yellow lens)
- Beam Pattern: Flood — 70°×45°
- Backlight: Amber (ABL)
- Mounting: Flush mount
- Input Voltage: 9–30V
- Operating Temperature: -40°F to 185°F
- Connector: Deutsch DT-style, 6″ pigtail with bare leads
- Warranty: Limited Lifetime
- Quantity: 2 pods (matched pair)
- Part Number: DD8125P
Diode Dynamics C2 2.0 Pro LED Light Pod Yellow Flood Flush ABL (Pair) (DD8125P) Documents:
Diode Dynamics C2 2.0 Pro LED Light Pod Yellow Flood Flush ABL (Pair) (DD8125P) Info GuideDiode Dynamics Stage Series C2 2.0 Flush Mount Installation Guide
