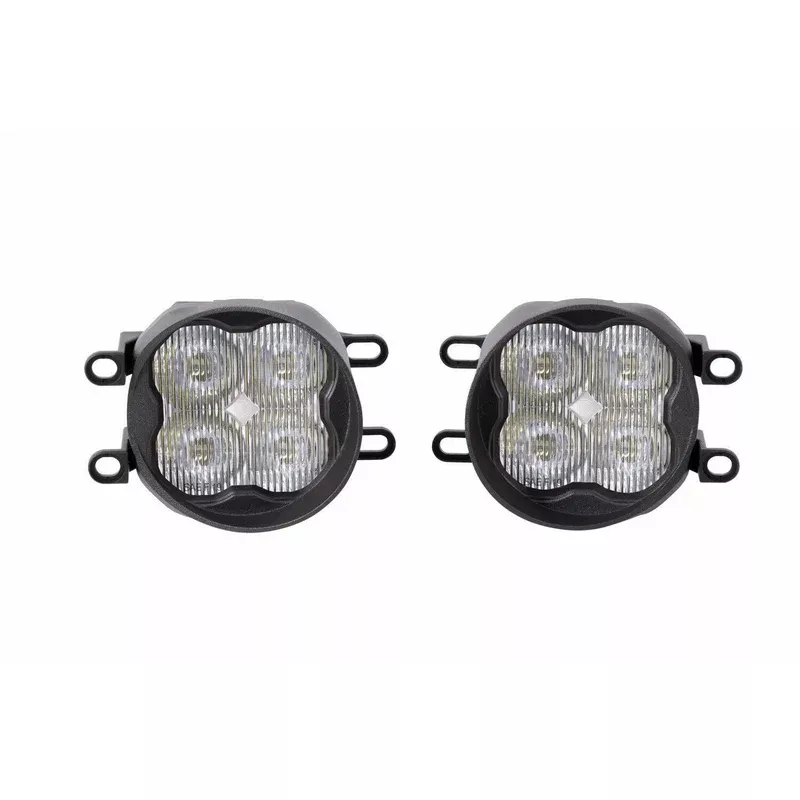

The Diode Dynamics SS3 Pro Type B Kit ABL White SAE LED Fog Light for 2006-2012 Toyota RAV4 (DD6999) from Nomadic Supply Company®Diode Dynamics SS3 Fog Light Kit Fitment Guide! Featuring higher output intensity than any other 3in light on the market these LED pods have been designed for maximum functionality with custom-engineered TIR optics shining in highly useful beam patterns all in a durable package.Upgrade your fog lights with our Diode Dynamics SS3 Pro Type B Kit ABL White SAE LED Fog Light for 2006-2012 Toyota RAV4 (DD6999) ! Featuring higher output intensity than any other 3in light on the market these LED pods have been designed for maximum functionality with custom-engineered TIR optics shining in highly useful beam patterns all in a durable package. With the included angled bezel the SS3 Fog Kit has a clean factory-style appearance only much brighter!Plug and Play:Thanks to custom-molded brackets the SS3 Fog Light Bracket Kit can be installed on your vehicle in minutes. Simply remove your factory fog light assembly and ours will bolt right in its place! Wire adapters are included with the kit allowing you to connect the lights to your factory bulb sockets – no additional wiring needed!Focused:Traditional optics like reflectors or simple lenses lose light internally and to glare so not all of the light shines on target. Instead the custom-engineered TIR optic in the SS3 collects all of the light from the LED and directs it only where you need it drastically reducing glare and improving total efficiency. The total intensity of the SS3 is much greater than other LED pods using basic optics or reflectors with a standard outer lens.SAE Compliant:When installed as a pair and aimed in accordance with your state’s regulations the Driving White pattern meets SAE J581 standard as a Driving/Auxiliary High Beam Light and the Fog pattern meets SAE J583 standard as a Fog lamp for legal on-road use.
Diode Dynamics SS3 Pro Type B Kit ABL White Fog Light, 2006-2012 RAV4 (DD6999) Features:
- Advanced TIR optics provide high efficiency and focus
- SAE-compliant road-legal output
- Includes angled bezel for factory-style appearance
- Plug and play no modification needed
- Durable powder-coated aluminum extrusion
- Engineered and Assembled in USA
Diode Dynamics SS3 Pro Type B Kit ABL White Fog Light, 2006-2012 RAV4 (DD6999) Specifications:
NOTE:Specifications listed here are for each individual pod.
| Lens Color/Optics | Peak Beam Intensity (candela) |
Illuminance (lux @ 10m) |
Measured Output (lumens) |
Raw Output (lumens) |
Output Color |
|---|---|---|---|---|---|
| FogWhite Sport | 10,600 cd | 106 lux | 1,520 lm | 2,262lm | 6000K White |
| FogWhite Pro | 11,900cd | 119 lux | 3,000 lm | 5,796 lm | 6000K White |
| FogWhite Max | 18,000cd | 180 lux | 3,500 lm | 7,920 lm | 6000K White |
| FogYellowSport | 9,050 cd | 91 lux | 1,300 lm | 1,930lm | 3000K Yellow |
| FogYellowPro | 10,900 cd | 109 lux | 2,700 lm | 5,220 lm | 3000K Yellow |
| Fog Yellow Max | 12,500 cd | 125 lux | 3,500 lm | 7,920 lm | 3000K Yellow |
