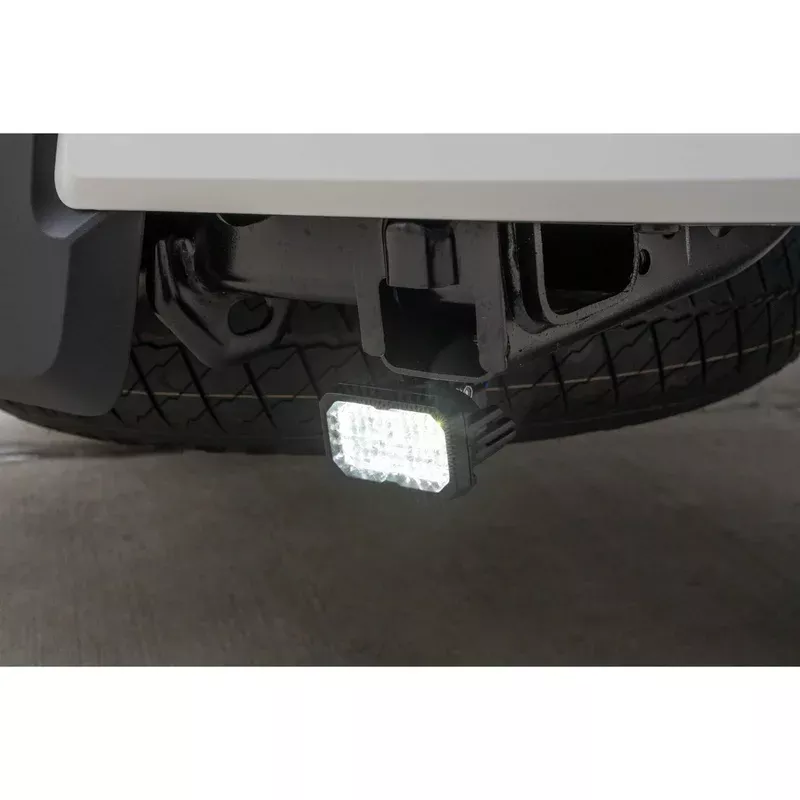

The Diode Dynamics Stage Series Reverse Light Kit for 2024+ Toyota Tacoma (C1R) (DD7945) from Nomadic Supply Company® is there are plenty of ways to add light behind your vehicle but the new Stage Series from Reverse Light Kit stands out with innovations in both function and ease of use.There are plenty of ways to add light behind your vehicle but the new Stage SeriesReverse Light Kit stands out with innovations in both function and ease of use. This kit adds a high-power reverse light additional running light and an optional 4th brake light with the C1R option! It also includes a plug-and-play wiring harness for trouble-free installation. Thanks to Stage Series TIR optic this kit provides a huge amount of extra reverse light.Plug and Play:Thanks to the 7-pin connectors this kit is completely plug-and-play. The included trailer harness plugs right into your factory trailer 7-pin connector for easy installation and operation.Backlight Functionality:This kit also features a distinctive backlight in a vibrant red color which functions as an additional accent light while driving! The backlight fully illuminates the TIR optic providing a more unique and modern look than the small indicator LEDs found in other products.SafetyStrobe 4th Brake Light:The C1R option features an additional high-power red function to serve as a powerful 4th brake light. The high-power red functionality activates anytime you apply your brakes adding a 4th brake light to your vehicle.The C1R also features optional brake light strobing which can be activated in 15-second intervals. By default the C1R will flash three times when the brake lights are initially applied for greater visibility. The SafetyStrobe feature can be easily disabled if desired.
Diode Dynamics Stage Series Reverse Light Kit for 2024+ Toyota Tacoma (C1R) (DD7945) Features:
- Direct fitment compatible with Toyota Tacoma 2024
- Allows you to mount two SSC1 C1R or SSC2 pods underneath the rear bumper.
- Plug-and-play wiring harness with 7-Pin connectors.
- Provides high-power reverse light red accent light and optional 4th brake light (C1R).
- Designed and assembled in USA.
Diode Dynamics Stage Series Reverse Light Kit for 2024+ Toyota Tacoma (C1R) (DD7945) Includes:
- 1x Diode Dynamics Stage Series Reverse Light Kit for 2024+ Toyota Tacoma (C1R) (DD7945)
- One (1)C1R HitchMount LED Pod
- One (1) C1R HitchMount Trailer Harness
- Mounting hardware
- Installation guide
Diode Dynamics Stage Series Reverse Light Kit for 2024+ Toyota Tacoma (C1R) (DD7945) Specifications:
- NOTE: Specifications listed here are for each individual pod.
| Lens Color/Optics | Peak Beam Intensity (candela) |
Illuminance (lux @ 10m) |
Raw Output (lumens) |
Output Color |
|---|---|---|---|---|
| SSC1 Sport | 400 cd | 4 lux | 1,449 lm | 6000K White |
| SSC1 Pro | 925 cd | 9 lux | 2,375 lm | 6000K White |
| C1R | 480 cd | 4 lux | 2,375 lm | 6000K White |
| C2 2.0 Sport | 750 cd | 8 lux | 1,190 lm | 6000K White |
| C2 2.0 Pro | 1,550 cd | 16 lux | 3,140 lm | 6000K White |
- Color Temp (CCT): 6000K
- Power (watts): SSC1 Sport: 12.8, SSC1 Pro: 19, C1R: 14.1, C2 2.0 Sport: 15, C2 2.0 Pro: 23
- Operating Voltage: 9-16V
- Current (amps @ 12.8V): SSC1 Sport: 1.0, SSC1 Pro: 1.5, C1R: 1.1, C2 2.0 Sport: 1.17, C2 2.0 Pro: 1.8
- Polarity: Polarity Specific
- Operating Temperature: -40C to 85C (-40F to 185F)
- LED Emitter: Luxeon Z ES, Cree XP-L HI, Osram Ostar Projection Compact
- Connector(s): Deutsch DT Input
- Driver Features: Constant Current
- Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket
- Cooling: Passive, Pin-Fin heatsink
- Intrusion Ratings: IP69K Waterproof, High Pressure
