The Diode Dynamics Stage Series SXS RGBW LED Rock Light Installer Kit w/ Controller (4-pack) (DD7751C) from Nomadic Supply Company® delivers full RGBW multicolor-plus-white output with high-power LED emitters sized for SXS vehicles, featuring M8 waterproof connectors and an included wireless controller.Looking to light up the trail at night? Look no further. Introducing the Diode Dynamics DD7751C Stage Series SXS RGBW LED Rock Light Installer Kit w/ Controller (4-pack)! Designed for superior durability and maximum performance, our Diode Dynamics DD7751C Stage Series SXS RGBW LED Rock Light Installer Kit w/ Controller (4-pack) has set a new standard in the offroad category. This kit includes everything you need to install four rock lights in the wheel wells of your vehicle. Stage Series Rock Lights set a new standard in the rock light category. These USA-assembled units offer unmatched light output in a compact size, making them the perfect solution to add more light underneath your Side-by-Side.
Unmatched Light Output:
With a true power draw of over 10 watts, the Diode Dynamics DD7751C Stage Series SXS RGBW LED Rock Light Installer Kit w/ Controller (4-pack) provides a peak output of 800 lumens. Even with claims of high power, generic rock lights run at only a few watts, making the Diode Dynamics Rock Light a huge step up for the entire category. Where generic rock lights require two or three units to light up one space on the vehicle, you’ll only need one to get the coverage and output you need.
Optically-Engineered, Interchangeable Lenses:
Most rock lights are built without optics in mind. They use a simple clear cover to protect from the elements. In true Diode Dynamics style, they’ve incorporated optical features to get the best performance possible in the Diode Dynamics DD7751C Stage Series SXS RGBW LED Rock Light Installer Kit w/ Controller (4-pack). Four individual optics are molded into the outer lens, which provides excellent spread and even, consistent coverage from each light. The lens itself is a thick automotive-grade polycarbonate, made to take a beating on the trail. And the best part? The lenses are interchangeable and can be swapped out easily, with either clear or diffused options. Click here to find extra interchangeable lenses.
Easy Install:
The included roll bar mounts allow you to easily mount our Diode Dynamics DD7751C Stage Series SXS RGBW LED Rock Light Installer Kit w/ Controller (4-pack) in the wheel wells of your SXS. Using the included clamps, simply mount the rock lights to the main frame support bars in the wheel wells!
Choose Your Color:
The Diode Dynamics DD7751C Stage Series SXS RGBW LED Rock Light Installer Kit w/ Controller (4-pack) is available in either cool white or RGBW multicolor. Both kits come standard with diffused lenses, providing excellent integration and light spread. White is a great option to get the maximum output possible. If you’re looking for more options, along with strobing, fading, and custom patterns, you’ll want to check out our RGBW Multicolor version!
Simple Connections:
For maximum convenience, these kits include a waterproof M8 barrel-style connector with a 10-inch lead. This provides a secure, waterproof connection with the plug-and-play harnesses. At only 8mm in diameter, it’s still easy to route the wires to where you need them.
Proven Reliability:
We know your rock lights will be put to the test, so you can rest assured that they have been designed for superior durability. The Diode Dynamics DD7751C Stage Series SXS RGBW LED Rock Light Installer Kit w/ Controller (4-pack) is IP68 waterproof rated and features a cast aluminum housing and pin-fin heatsink, for effective thermal dissipation. The lens is designed with thick automotive-grade polycarbonate and a UV coating. Backed by a limited 8-year warranty, they have been tested in-house from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. Rest assured, the Stage Series Rock Lights will handle whatever you throw at them.
Diode Dynamics SXS RGBW LED Rock Light Kit w/ Controller (4-pack) (DD7751C) Features:
- High-intensity light output
- Aluminum heatsink with signature Ico Bezel shape
- Thick, durable lenses, engineered to spread light
- Engineered and Assembled in USA

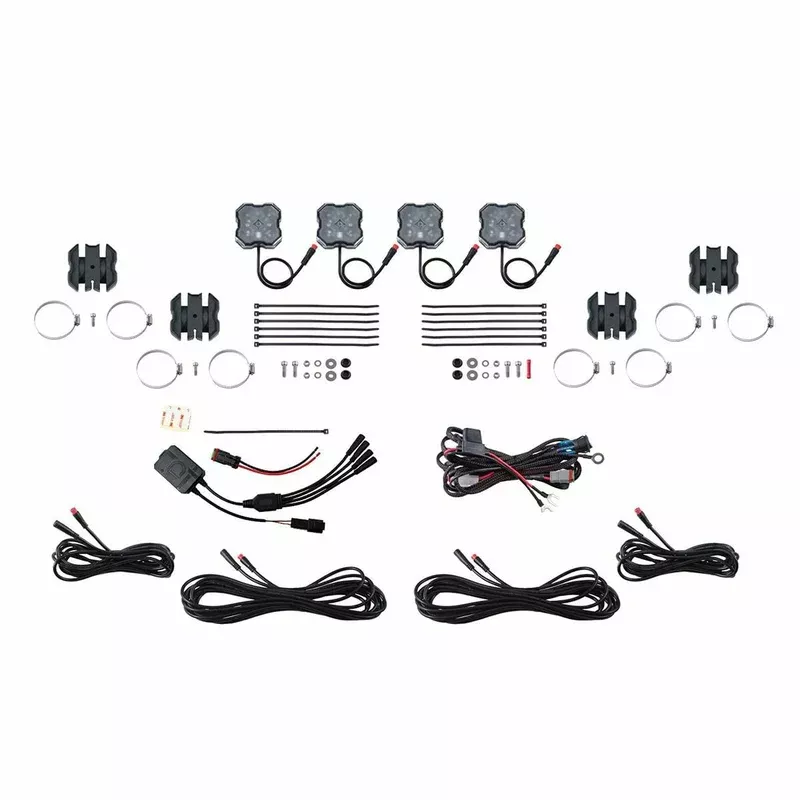

Diode Dynamics SXS RGBW LED Rock Light Kit w/ Controller (4-pack) (DD7751C) Includes:
- 1x Diode Dynamics Stage Series SXS RGBW LED Rock Light Installer Kit w/ Controller (4-pack) (DD7751C)
- Four (4) Stage Series RGBW Rock Lights
- One (1) Bluetooth RGBW M8 Controller
- One (1) Rock Light RGBW Wiring Harness
- Four (4) Rock Light Tube Mount Adapters
- One (1) 1M Extension
- One (1) 3M Extension
- Two (2) 5M Extensions
- Sixteen (16) Zip Ties
- Installation guide
Diode Dynamics SXS RGBW LED Rock Light Kit w/ Controller (4-pack) (DD7751C) Specifications:
NOTE: The output data below is for the White color option.
- Measured Lumens: 75 lm
- Intensity (cd): 30 cd
- Color Temp (CCT): 6800K
- Beam Angle: Round, 60°
- Power (watts): 4.8
- Current (amps @ 13.2V): 0.36
- Wire Size: 28AWG
- Polarity: Polarity Specific
- Operating Temperature: -40C to 85C (-40F to 185F)
- LED Emitter: Lumileds Z ES
- Connector(s): M8 Input
- Driver Features: Linear Regulated
- Materials: UV Coated Polycarbonate Lens, Powder-coated Aluminum
- Cooling: Passive, Pin-Fin heatsink
- Compliance Ratings: SAE J575 Durability Test
- Intrusion Ratings: IP68 Waterproof
- Shipped Weight (lb): 4.1
Diode Dynamics Stage Series SXS RGBW LED Rock Light Installer Kit w/ Controller (4-pack) (DD7751C) How To Mount Your Rock Light:
Step 1 – Identify Mounting LocationIdentify the location you would like to mount your Stage Series Rock Lights.Step 2 – Prepare Rock Light for MountingRemove the outer lens from your rock light, then remove the center rubber dust seal.Step 3 – Drill Mounting HoleTo mount the rock light using the center hole option, drill a hole using a 7/32″ or 15/64″ bit in your desired location.Step 4 – Drill Wire HoleIf you would like to hide the wiring, line up the light over the hole you just drilled and drill an additional 3/8″ hole in the appropriate location to run the wire through your mounting surface. Otherwise, pull the wiring to the side.Step 5 – Mount Rock LightUse the included nut, bolt, and washers to mount the light as shown in the diagram below.Step 6 – Mount with Zip Ties (Optional)You may alternatively use zip ties for mounting the rock light to any available attachment point, with integrated tabs on each side of the light.Step 7 – Reassemble Rock LightReinstall the rubber dust seal and clip the lens into position.Wiring InstructionsStep 8 – Route Switch WiringDetermine a suitable location to mount the switch, near the battery or main power terminal. Route the switch wiring to that location.Step 9 – Connect to BatteryConnect the red power input wire to the positive battery/power terminal. Connect the black ground wire to the negative battery terminal or a factory grounding point.Step 10 – Select Switch LocationDetermine a suitable location to mount the switch in the cabin of the vehicle.Route the switch wiring to that location. This may require going through the vehicle firewall. We recommend following the path of the factory wiring harness, and unplugging the switch while routing the wires.Step 11 – Mount the SwitchDrill a 3/4″ hole and mount the switch. Reconnect wires to switch.NOTE: The gold spade on the switch should be connected to the black (ground) wire.Step 12 – Route the Extension WiresIdentify the extension and splitter wires (included with 8-pack kits) included in your kit. Depending on the kit you ordered, you will have 3M and 5M extension wires. Route the extension wires to each LED, avoiding any moving parts or direct contact with heat sources. Following the factory wire loom is the best practice.See the diagrams below for the most common way to wire the kit. Plug the output connector into the LED.Rock Light Single Color Wiring Diagram – 4 PackRock Light Single Color Wiring Diagram – 4 Pack + 1M ExtensionRock Light Single Color Wiring Diagram – 4 Pack + 2 Pack Add-OnRock Light Single Color Wiring Diagram – 8 PackRock Light RGBW Wiring Diagram – 4 PackRock Light RGBW Wiring Diagram – 4 Pack + 1M ExtensionRock Light RGBW Wiring Diagram – 4 Pack + 2 Pack Add-OnRock Light RGBW Wiring Diagram – 8 PackStep 13 – Reconnect Battery Reconnect the negative battery terminal, test thoroughly, and aim the LED appropriately based on use. Secure any excess or loose wiring. Please check your local laws and regulations regarding aiming, installation, and restrictions for on-road use, as applicable.
Diode Dynamics SXS RGBW LED Rock Light Kit w/ Controller (4-pack) (DD7751C) Documents:
Diode Dynamics SXS RGBW LED Rock Light Kit w/ Controller (4-pack) (DD7751C) Specifications Sheet
