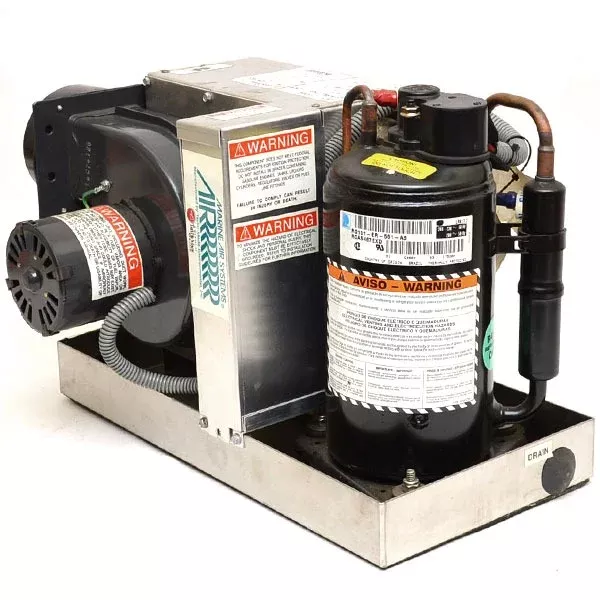

Boat part number 7201390 is a new 5000 BTU 220 volt Coolmate mechanical air conditioning unit from Dometic, part number 207-415004 . Commonly used on 275 SSI model Chaparral Boats, part number CHA275Z .
This air conditioning unit features a small footprint, quiet rotary compressor, and a low amperage draw per manufacturer. Rated for 50 Hz / 220 volts / 1 phase systems. Measures approximately 17 1/2″ wide x 11 3/8″ deep x 10 1/2″ high overall. Has a 4″ OD opening for air ducts, and a 5/8″ OD water inlet and 5/8″ OD outlet. Uses 417A refrigerant.
Specifications:
- Boat Manufacturer: Chaparral Boats
- Model: 275 SSI
- Year: 2007 – 2009
- Part Number: CHA275Z
- Part Manufacturer: Dometic
- Part Number: 207-415004 / CLM5KCZ50/1-2KB
- Electrical: 50Hz / 220V / 1 phase
- Capacity: 5000 BTU
- Hose Connections: (2) 5/8″ OD
- Duct Connections: (1) 4″ OD
- Overall Dimensions: 17 1/2″ W x 11 3/8″ D x 10 1/2″ H
Because of the size and/or commodity of this item, we must ship via truckline. The shown freight cost is for the LOWER 48 STATES ONLY and shipped to a business at a commercial address WITH LOADING DOCK. We can ship to your residence, or possibly a nearby terminal. We can also offer international shipping. Please call or email for a shipping quote if needed.
