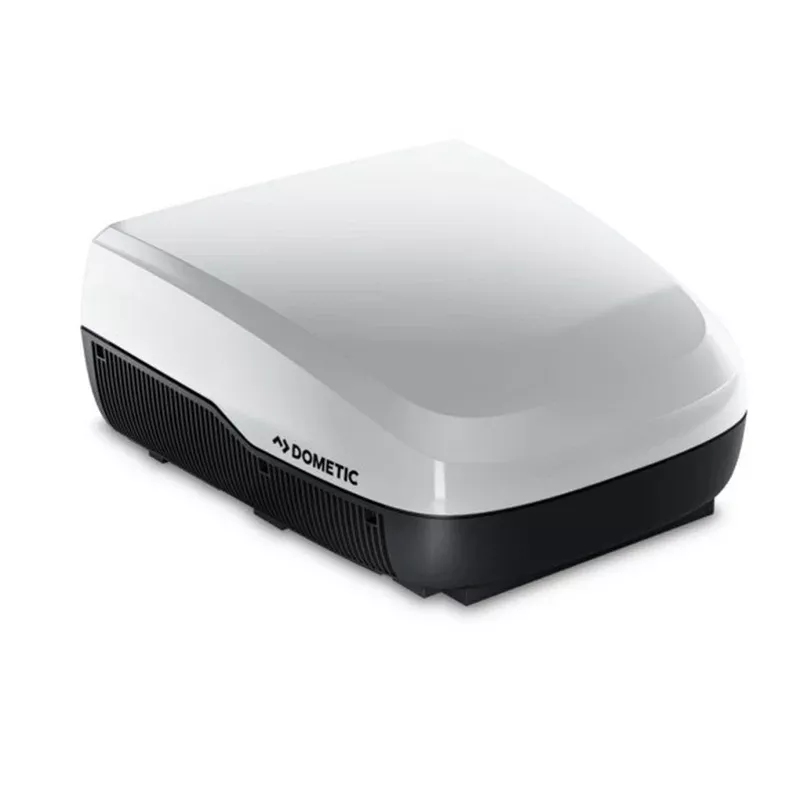

The Dometic FreshJet 4 115V 15,000 BTU Air Conditioner (White) (9610007813) from Nomadic Supply Company® delivers powerful 15,000 BTU cooling with fully integrated electronic controls and RV-C bus communication for seamless single-zone and multi-zone thermostat compatibility. The Dometic FreshJet 4 115V 15,000 BTU Air Conditioner (White) (9610007813) represents the next generation of Dometic rooftop RV air conditioning, combining higher airflow output, faster cool-down performance, and up to 10 dB quieter operation compared to prior generation Dometic models.Engineered with a dual-motor design featuring independent fan and blower motors, the Dometic FreshJet 4 115V 15,000 BTU Air Conditioner (White) (9610007813) delivers optimized air distribution throughout recreational vehicle interiors for faster temperature equalization and improved comfort. The factory-installed hard start device enhances compressor startup reliability and reduces peak electrical draw, making it compatible with solar systems, lithium battery banks, and small generators without nuisance breaker trips.The Dometic FreshJet 4 115V 15,000 BTU Air Conditioner (White) (9610007813) incorporates an e-coated evaporator coil for superior corrosion resistance, R410a refrigerant with reduced charge requirements, and built-in RV-C communication for direct integration with compatible Dometic control systems. Nomadic Supply Company® provides comprehensive technical support for installation and system integration with existing RV ceiling assemblies.
Dometic FreshJet 4 115V 15,000 BTU Air Conditioner (White) (9610007813) Features:
- Integrated electronic controls with RV-C bus communication: Built-in thermostat compatibility eliminates the need for separate control system wiring in most applications.
- Higher airflow for improved cooling performance: Delivers enhanced air circulation throughout recreational vehicle interiors for faster, more uniform temperature reduction.
- Faster cool-down enabled by dual-motor design: Independent fan and blower motors accelerate temperature reduction and improve overall efficiency.
- Up to 10 dB quieter operation for improved interior comfort: Significantly reduced noise levels compared to previous generation Dometic rooftop units.
- Built-in hard start for reliable compressor startup and reduced breaker trips: Pre-installed component reduces peak electrical startup draw for generator and battery system compatibility.
- E-coated evaporator coil for corrosion resistance and longevity: Epoxy coating protects against moisture, salt air, and airborne contaminants for extended service life.
- R410a refrigerant with reduced charge requirements: Lower refrigerant volume maintains full rated cooling performance while reducing environmental impact.
- 20A standard circuit compatibility: Works with standard 115V 20A RV electrical systems for straightforward installation.
- Independent fan and blower motors for optimized air distribution: Dual-motor design ensures efficient airflow patterns throughout RV interiors.
- Improved circulation efficiency for more uniform cooling: Consistent temperature distribution across living spaces reduces hot spots.
- Single-zone and multi-zone system compatible: Full RV-C communication supports both standalone and multi-zone Dometic climate control configurations.
- Factory pre-installed roof compression gasket: Weatherproof seal included for simplified installation into standard 14″ × 14″ rooftop openings.
- Direct replacement for legacy Dometic models: Compatible with existing Dometic ceiling assemblies when properly configured.
- RJ11 to RJ45 Adapter Harness (Part 9610008210) required for most Penguin II replacements
Dometic FreshJet 4 115V 15,000 BTU Air Conditioner (White) (9610007813) Includes:
- Factory pre-installed roof compression gasket
Dometic FreshJet 4 115V 15,000 BTU Air Conditioner (White) (9610007813) Specifications:
- Cooling Capacity: 15,000 BTU/hr
- Electrical Requirements: 115V AC, 60Hz, 1 Phase
- Circuit: 20 Amp standard
- Refrigerant Type: R410a
- Controls: Electronic (built-in) with RV-C bus communication
- Motor Configuration: Dual-motor (fan + blower)
- Noise Level: Up to 10 dB quieter than prior generation
- Application: Rooftop standard-profile RV air conditioner
- Thermostat Compatibility: Single-zone and multi-zone RV-C systems
- Weight: 76 lbs
- Roof Opening Required: 14″ × 14″ standard RV opening
- Model: FJX4573EWHAS
- Model on Label: FJX4573EWHAS
- SKU: 9610007813
Dometic FreshJet 4 115V 15,000 BTU Air Conditioner (White) (9610007813) Installation:
Hardware is required for this unit to be fully operational. Please ensure that you select the mandatory hardware.Dometic FreshJet 3 & 4 Air Conditioner Air Distribution Box (No Display, Non-Ducted)Dometic Connect Essential Single & Multizone 12V DC RV Digital Thermostat (4471011652)Dometic FreshJet Electronic Display Air Distribution Box (Non-Ducted) (308751)Dometic FreshJet Electronic Display Air Distribution Box w/ LED Lights (Non-Ducted) (308752)Dometic FreshJet No Display Air Distribution Box w/ LED Lights (Non-Ducted) (308754)Dometic FreshJet Return Air Grille w/ Quick-Cool (322505)Dometic FreshJet Return Air Grille w/ Quick-Cool and LED Lights (322506)
Dometic FreshJet 4 115V 15,000 BTU Air Conditioner (White) (9610007813) Documents:
Dometic FreshJet 4 115V 15,000 BTU Air Conditioner (White) (9610007813) Installation and Operating ManualNomadic Supply Company Dometic Catalog
