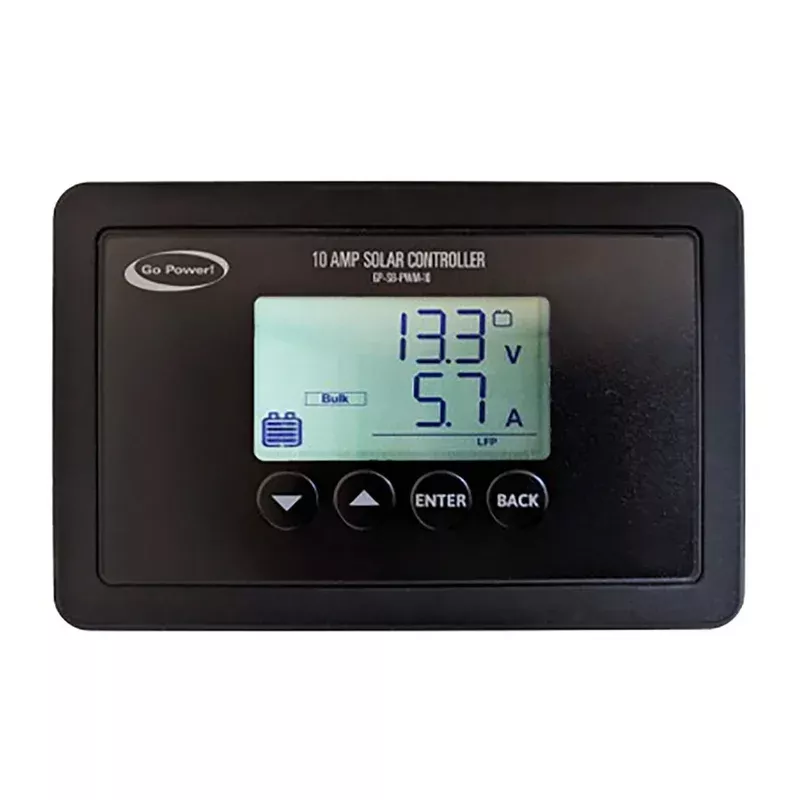

The Dometic MPS 10 Amp Single Bank Digital Solar Controller (GP-SB-PWM-10)from Nomadic Supply Company® regulates current and protects your batteries from over-charging.The Dometic Go Power! MPS 10 Amp Single Bank Digital Solar Controller (GP-SB-PWM-10) is a 12 volt flush-mounted, single-bank, photo-voltaic (PV) charge controller rated for a continuous solar current input of 10 amps.
Dometic MPS 10 Amp Single Bank Digital Solar Controller (GP-SB-PWM-10) Features:
- Regulates current flow from your solar modules to your batteries
- Temperature compensated pulse width modulation (PWM) charging
- 4 Battery charging profiles: Sealed/Gel, AGM, Flooded, LiFePO4 (lithium)
- 4 stage charging: Bulk, Absorption, Float and Equalize
- Back lit LCD screen displays charging current, battery voltage and battery state of charge
- Built-in USB charge port
- Heavy-duty terminals for low resistance connections
- Suitable for 12V solar systems up to 200 watts or 10 amps
- 5 year warranty
Dometic MPS 10 Amp Single Bank Digital Solar Controller (GP-SB-PWM-10) Specifications:
| Nominal System Voltage | 12V |
| Max Solar Array Current | 10A |
| Battery Voltage Range | 6V — 16V |
| Max. Solar panel input voltage/Max Solar Power | 28V/200W |
| Max. Battery Charge Current | 37.5A |
| Display Consumption | ≤15mA |
| Temp. Compensation | -25mV/K |
| Operating Temperature | -40 to 60°C / -40 to 140°F |
| Humidity | 99% N.C. |
| Dimensions (H x W x D): | 4.02 x 5.2 x 1.26 in; 102 x 132 x 32 mm |
| Weight | 260g; 9.2oz |
| Maximum Wire Gauge: | 8 AWG/10 mm2 |
| Warranty | 5 years |
| Protection | Battery/Solar Reverse Polarity, Battery/Solar Short Circuit, Battery/Solar Reverse Current, Battery/Solar Over voltage up to 50V, Over temperature, Over Current |
