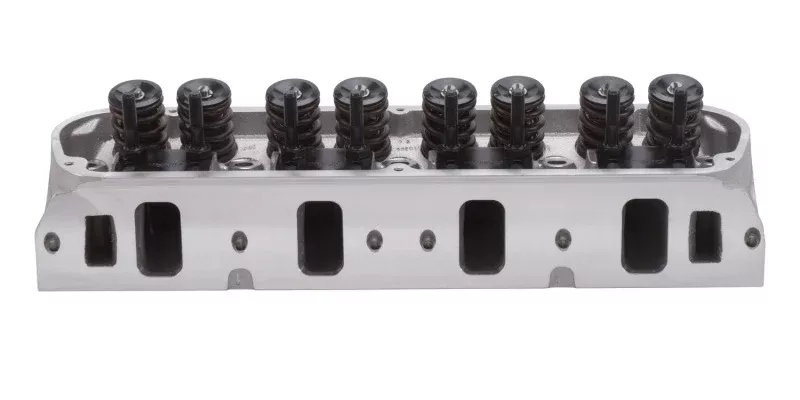

Edelbrock 1Pr SBF Cyl Head E-205 2 08 Intake Complete Assembled w/ Springs

Cylinder Head Specifications: Combustion chamber volume: 60cc; Intake runner volume: 205cc; Exhaust runner volume: 62cc; Intake valve diameter: 2.08″; Exhaust valve diameter: 1.60″; Valve stem diameter: 11/32″; Valve guides: Manganese Bronze; Deck thickness: 5/8″; Valve spring diameter: 1.46″; Valve spring maximum lift: .575″(5028) / .650″(5027); Rocker stud: 3/8″; Guideplate: Hardened steel; Pushrod diameter: 5/16″; Valve angle: 20?; Exhaust port location: Stock; Spark plug fitment: 14mm x 3/4 reach, gasket seat * INSTALLATION NOTE: Hardened pushrods required, use Edelbrock 9632 (flat tappet only) for 302 applications. Will not accept rail rockers. 289-302 V8s require Head Bolt Bushings 9680 and either Head Bolt Kit 8552 (7/16″) or stock head bolts. Match with Edelbrock head gasket sets. Bare heads will have valve guides and seats installed, but will require final sizing & a valve job to match the valves you will be using. Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4″ reach with flat gasket seat.
1pr. SBF CYL HEAD E-205 2.08 INTAKE COMPLETE Assembled with springs for mechanical flat tappet and hydraulic roller camshaft applications)
Edelbrock Aluminum Spacer Plate and bolt kit to fit a Ford 9.2 deck SC-1 Manifold to a 9.5 deck block. Includes two spacer plates and longer bolts.
Ford:Small-Block Windsor:289 (4.7L)/302 (5.0L)/351 (5.8L)
