Edelbrock LS1 Carburedted Manifold Only

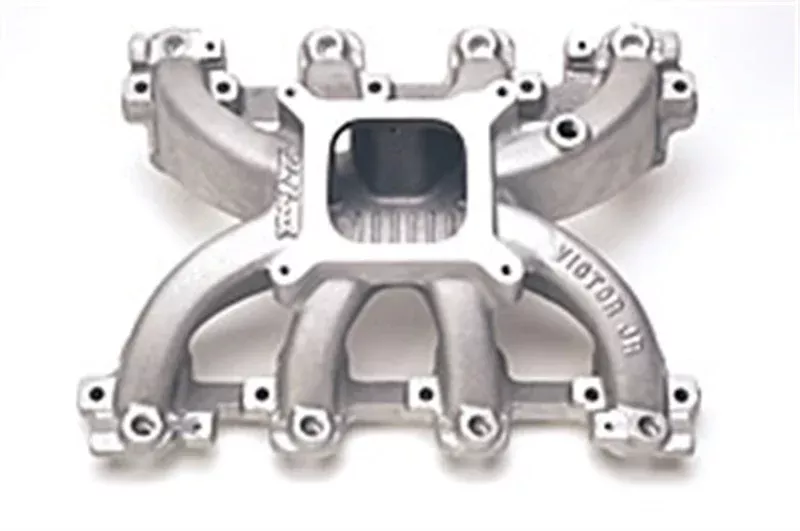

This high-rise single plane intake is capable of supporting up to 600 hp. The Victor Jr. LS1 accepts a square bore carburetor and includes an electronic timing module that picks up MAP, crank position, and cam position in order to drive the stock LS1 Coil-on-Plug ignition system. The module offers a choice of 6 built-in timing curves, each tailored for engine displacement, cam profiles, and fuel grades. The 29087 (manifold only) can be used on LS2 applications when matched with MSD’s 6012 LS2 ignition controller (available through MSD? Performance). Includes a throttle bracket designed to work with 700R-4, 200R-4 and Turbo 350 transmissions. Most applications will require hood modification. INSTALLATION NOTE: Uses LS1/LS6 style individual port o-ring seals. Crankshaft sleeve HP3795 and Flexplate HP4004 is recommended when using a TH350, TH400 or 700R4 on a LS1; these items are available through Hughes Performance retailers or you can call Hughes at 800-274-RACE. Manifold height: A-4.95″, B-4.95″; Carb pad height: 4.95″. Port exit dimensions: .98″ x 2.74″.
Edelbrock LS-1 Carburedted Manifold Only
Edelbrock part 79535 Big Block Chevy E-CNC 355 cylinder head is the ultimate in performance. The cylinder heads are fully CNC ported for maximum horsepower and torque, making them ideal for high-performance’s street and light duty racing.
Chevrolet:Small-Block LC9:325 (5.3L);Chevrolet:Small-Block LH8:325 (5.3L);Chevrolet:Small-Block LMF:325 (5.3L);Chevrolet:Small-Block LMG:325 (5.3L);Chevrolet:Small-Block LY5:325 (5.3L);Chevrolet:Small-Block Gen III LM7:325 (5.3L);Chevrolet:Small-Block Gen III LR4:293 (4.8L);Chevrolet:Small-Block Gen III LS1:346 (5.7L);Chevrolet:Small-Block Gen III LS2:364 (6.0L);Chevrolet:Small-Block Gen IV LMF:325 (5.3L);Chevrolet:Small-Block Gen IV LY5:325 (5.3L)
