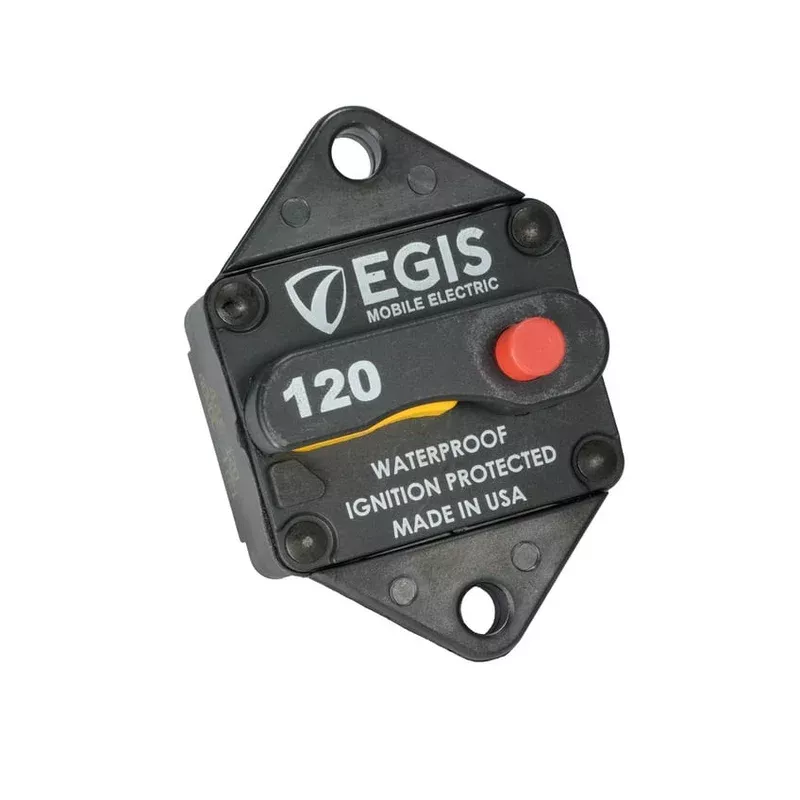

The Egis 285 Series 120A Circuit Breaker Panel Mount (4706-120) from Nomadic Supply Company® delivers professional-grade circuit protection with a robust 120-amp continuous current rating and high-visibility ON/OFF controls for demanding mobile electronics installations. This American-made circuit breaker combines exceptional durability with IP67 ingress protection, making it the ideal choice for harsh environment applications requiring reliable electrical system protection.Engineered for versatility, the Egis 285 Series 120A Circuit Breaker Panel Mount (4706-120) supports both front and rear panel mounting configurations through its integrated flange design. The unit’s 48-volt DC rating easily accommodates 12V and 24V systems while providing enhanced protection for higher-voltage 36V and 48V applications, eliminating the need for traditional fuses in these demanding electrical environments.Built to withstand extreme conditions, the Egis 285 Series 120A Circuit Breaker Panel Mount (4706-120) features stainless steel hardware with KEPS locking nuts for superior corrosion and vibration resistance. With its impressive 6,000-cycle electrical and manual switching endurance rating, plus high interrupt current capability for large paralleled battery bank applications, this circuit breaker delivers long-term reliability backed by a comprehensive four-year warranty.
Egis 285 Series 120A Circuit Breaker Panel Mount (4706-120) Features:
- ON/OFF High Visibility Controls: Provides clear visual indication of circuit breaker status for easy identification during operation and maintenance procedures.
- Sealed Construction: Sealed against dust and moisture penetration with high temperature rating suitable for all installation locations and harsh environmental conditions.
- Panel Mount Flange: Provides rear and front panel installation options for flexible mounting configurations in various applications and enclosure designs.
- Stainless Steel Hardware with KEPS Locking Nuts: Corrosion and vibration resistant construction designed specifically for harsh environment applications requiring long-term durability.
- Made in the USA: Manufactured in the United States using high quality components for superior reliability and performance standards.
- Dust and Water Intrusion Protection: Sealed against environmental contamination to ensure reliable circuit protection for the life of the electrical system installation.
- High Voltage Rating: 48 VDC rating easily supports 12V and 24V applications while offering improved protection for 36V and 48V systems rather than using traditional fuses.
- High Electrical and Manual Switching Endurance: Delivers 6,000 cycles at full current rating for extended operational life and reliability.
- High Interrupt Current Capability: Safely protects circuits connected to large paralleled battery banks with significant available power and fault current potential.
- Four Year Warranty: Comprehensive warranty coverage demonstrating manufacturer confidence in the product’s ability to meet demanding application requirements.
Egis 285 Series 120A Circuit Breaker Panel Mount (4706-120) Specifications:
- Continuous Current (Amps): 120
- Max Voltage (VDC): 48
- Cycling Endurance: 6,000
- Interrupt Current @ 16 VDC (Amps): 5,000
- Interrupt Current @ 28 VDC (Amps): 3,000
- Ingress Protection Rating: IP67
