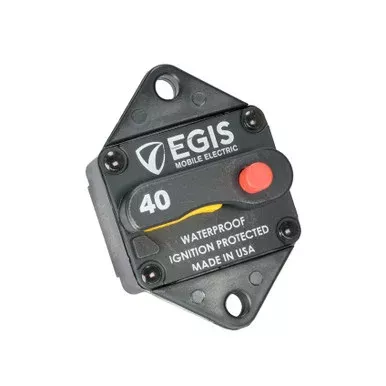

EGIS 285-Series 40 Amp Circuit Breaker Panel MountModel: 4706-040
- ON/OFF High Visibility ControlsSealed against dust and moisture penetration. High temp rated for all installation locations.
- Panel Mount FlangeProvides Rear / Front panel installation options.
- Stainless Steel Hardware / KEPS Locking NutsCorrosion and vibration resistant for harsh environment applications.
- Made in the USA of high quality components.
Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installationHigh Voltage (48 Vdc) Rating: easily supports 12 and 24 Vdc applications while offering improved protection for 36 and 48 Vdc systems rather than using fuses.High Electrical / Manual Switching Endurance delivers 6,000 cycles at full currentHigh Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power4 Year Warranty: We stand behind our product’s ability to meet your needs.
Specifications
| CONTINUOUSCURRENT (AMPS) | 40 |
| MAX VOLTAGE(VDC) | 48 |
| CYCLINGENDURANCE | 6,000 |
| INTERRUPT CURRENT @ 16 VDC (AMPS) | 5,000 |
| INTERRUPT CURRENT @ 28 VDC (AMPS) | 3,000 |
| INGRESS PROTECTION RATING | IP67 |
