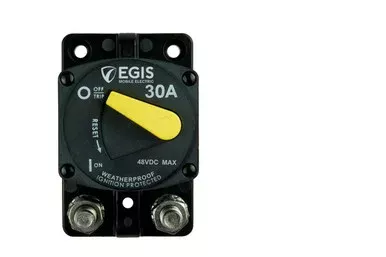

EGIS 87-Series 30 Amp Circuit Breaker Surface MountModel: 4704-030
- ON/OFF High Visibility ControlsSealed against dust and moisture penetration. High temp rated for all installation locations.
- Reinforced Mounting ?Ensures long term structural reliability with reinforced mounting tabs built to withstand the stress of vibration.
- Stainless Steel Hardware / Serrated Flange NutsCorrosion and vibration resistant for harsh environment applications.
- Made in the USA of high quality components.
IP 66 Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installationHigh Voltage (48 Vdc) Rating: easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 VdcHigh Electrical / Manual Switching Endurance delivers 2,000 cycles at full currentHigh Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power4 Year Warranty: We stand behind our product’s ability to meet your needs.
Specifications
| CONTINUOUSCURRENT (AMPS) | 30 |
| MAX VOLTAGE(VDC) | 48 |
| CYCLINGENDURANCE | 2,000 |
| INTERRUPT CURRENT @ 14 VDC (AMPS) | 5,000 |
| INTERRUPT CURRENT @ 28 VDC (AMPS) | 3,000 |
| INGRESS PROTECTION RATING | IP66 |
