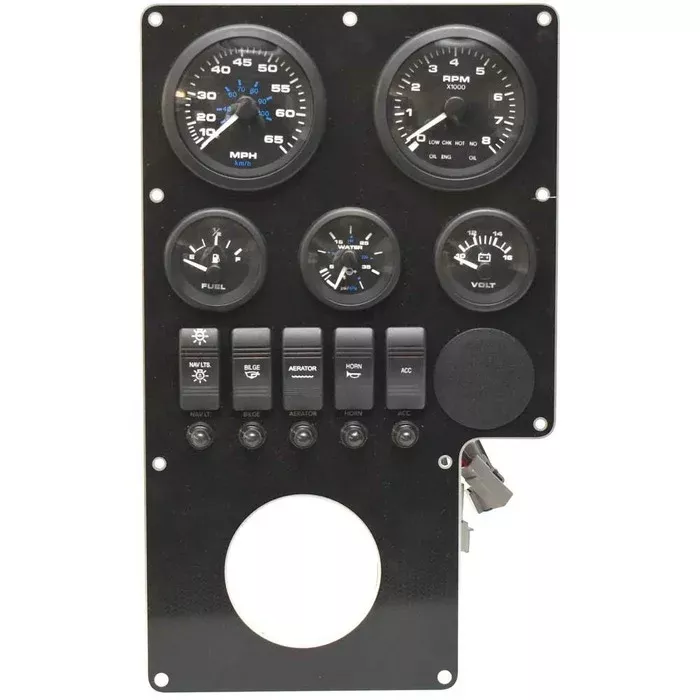

Boat part number 1103801 is a new gauge panel for a Storm Cat 210 model Excel boat, part number unavailable.
This gauge panel is constructed out of 1/8″ thick aluminum with a black inlay and herringbone pattern on the front. Measures approximately 9 1/2″ W (tapering down to 7 3/8″ W) x 16″ H x 3 1/2″ D overall. The installed wiring harness hosts (2) 8-pin male, (1) 2-pin female Deutsch, (1) 2-pin male Deutsch, and (2) wire lead connections. Mounts via (10) 1/4″ Dia. holes set around the perimeter.
This gauge panel features (5) pre-installed Teleflex gauges from the Hurricane series. Each of these clear halogen illuminated gauges feature a black matte bezel, domed lens, white face, white lettering and numerals with blue accents, and white needles.
This panel features the following gauges:
- (1) 65 MPH Speedometer | 84513 | Pitot
- (1) 8000 RPM Tachometer | 58883 | Set up for 2/3/4/5/6 Pulse and 4/6/8 Cylinder Engines
- (1) Fuel Gauge | 780481PDNB
- (1) Volt Gauge | 84134
- (1) Water Pressure Gauge | 67386
This dash panel also features the following:
- (1) Rocker Switch: On/Off/On “Nav Anc Lights”
- (1) Rocker Switch: On/Off “Bilge”
- (1) Rocker Switch: On/Off “Aerator”
- (1) Rocker Switch: Momentary On/Off “Horn”
- (1) Rocker Switch: On/Off “Acc”
- (1) 2″ Dia. Gauge Blank
- (1) Booted Breaker: “Nav Lt.”
- (1) Booted Breaker: “Bilge”
- (1) Booted Breaker: “Aerator”
- (1) Booted Breaker: “Horn”
- (1) Booted Breaker: “Acc”
- (1) 3 1/2″ Dia. Cutout
Specifications
- Boat Manufacturer: Excel
- Model: Storm Cat 210
- Year: Unavailable
- Part Number: Unavailable
- Material: Aluminum
- Color: Black
- Finish: Herringbone
- Overall Dimensions: 9 1/2″ W (Tapers to 7 3/8″ W) x 16″ H x 3 1/2″ D
- Connections: (2) 8-Pin Male | (1) 2-pin Female Deutsch | (1) 2-Pin Male Deutsch | (2) Wire Lead
- Set up for 2/3/4/5/6 Pulse and 4/6/8 Cylinder Engines
