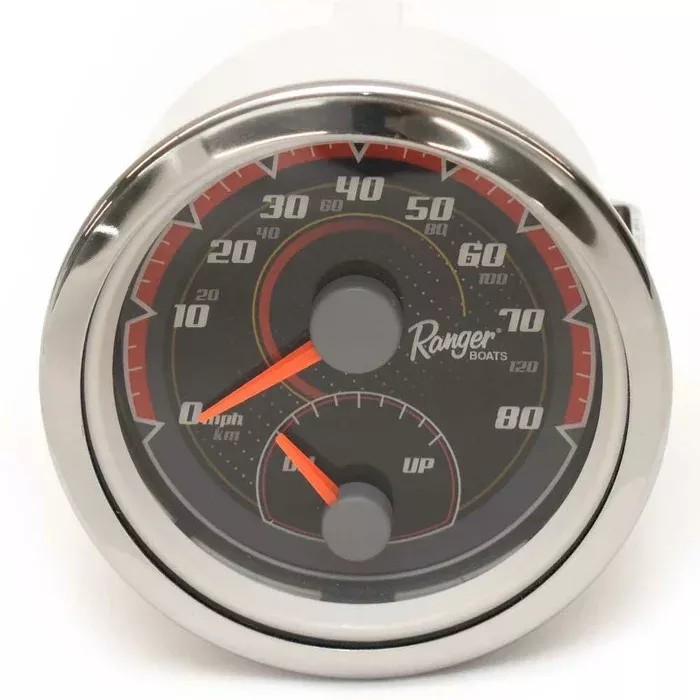

Boat part number 7103958 is a new multifunction 0-80 MPH speedometer and trim gauge from Faria, part number 961227 . Commonly used on Ranger Boats, part number 324746 , but may be used on other boats.
This clear electronically illuminated gauge features a domed lens, black and gray colored face, silver colored bezel, white lettering and numerals, red and yellow accents, with orange needles.
Measures approximately 3 3/4″ OD (including bezel) x 3 3/8″ D overall. Requires an approximate 3 1/4″ Dia. cutout. Hosts (1) 9-pin Deutsch, (1) 6-pin Deutsch and (2) stud terminal connections. Set up for Mercury and post 2000 Yamaha outboard engines.
Mounting bracket included.
Specifications:
- Boat Manufacturer: Ranger Boats
- Part Number: 324746
- Part Manufacturer: Faria
- Part Number: 961227
- Colors: Black (Face) | Silver (Bezel)
- Overall Dimensions: 3 3/4″ OD x 3 3/8″ D
- Cutout: 3 1/4″ Dia.
- Connections: (1) 9-Pin Deutsch / (1) 6-Pin Deutsch / (2) Stud Terminal Connections
- Intended for Mercury and post 2000 Yamaha Outboard Engines
Pigtail connector / harness not included.
