Boat part number 8600955 is a new Euro Series boat temperature gauge manufactured by Faria, part number GPC619B . Commonly used on Larson Boats, part number 2266-C619-GAUGE-20 .

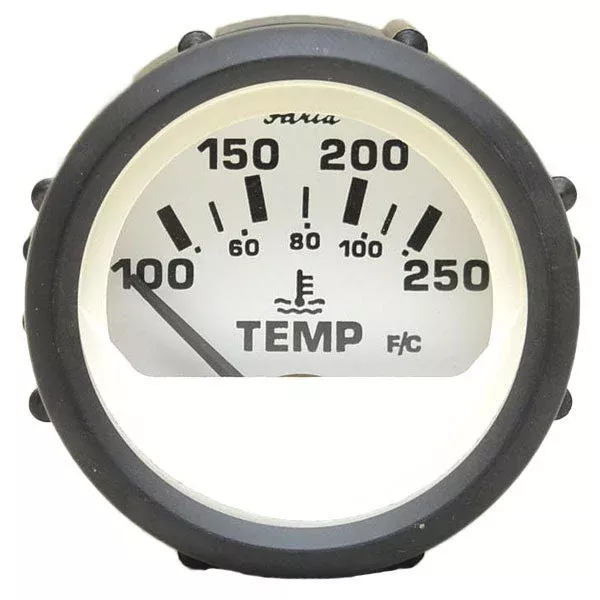

This clear halogen bulb illuminated temperature gauge features a flat lens, black colored bezel, white face, black needle, black lettering and accents. Gauge measures approximately 2 1/4″ diameter across the face including bezel x 4 1/8″ deep overall (including threaded screws). Requires an approximate 2″ diameter cutout. Hosts (1) 4 pin Male plug connection. Temperature reading rated at 100 – 250 Degrees Fahrenheit. Mounting bracket included. Sold as single.
Specifications:
- Boat Manufacturer: Larson Boats
- Part Number: 2266-C619-GAUGE-20
- Part Manufacturer: Faria
- Series: Euro
- Part Number: GPC619B
- Colors: Black / White
- Overall Dimensions: 2 1/4″ diameter across the face including bezel x 4 1/8″ deep overall (including threaded screws)
- Cutout: 2″ diameter
- Connection: (1) 4 pin Male plug
- Temperature Range: 100 – 240 Degrees Fahrenheit
