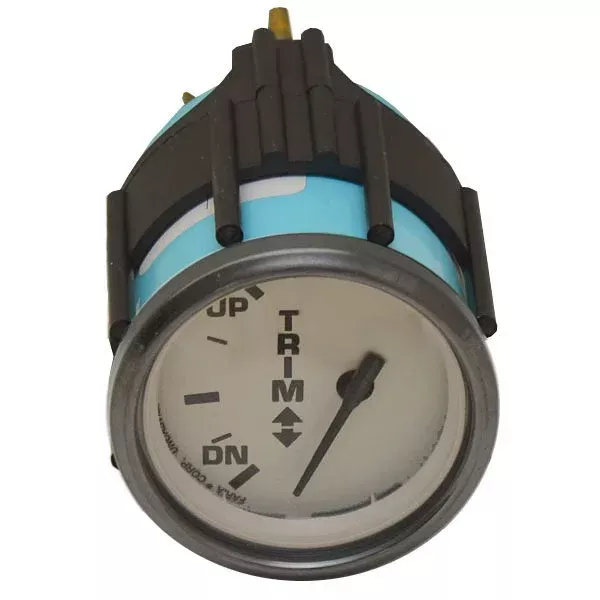

Boat part number 1069070 is a new trim gauge from Faria, part number GP8072A .
This clear halogen bulb illuminated trim gauge features a domed lens, pewter color bezel, tan face, black needle, black lettering, and black accents. Measures approximately 2 1/4″ diameter across the face x 3 7/8″ deep overall. Has (3) pre-labeled bolt connectors that read as follows: (1) GND / (1) B+ / (1) SIG. Also features (2) single spade male connectors. Requires an approximately 2 1/8″ cutout. Mounting bracket included.
Specifications:
- Part Manufacturer: Faria
- Part Number: GP8072A
- Color: Tan / Black
- Overall Dimensions: 2 1/4″ dia x 3 7/8″ D
- Cutout: 2″
- Connection: (1) GND / (1) B+ / (1) SIG thread bolt
- Set Up For:Honda outboards only
