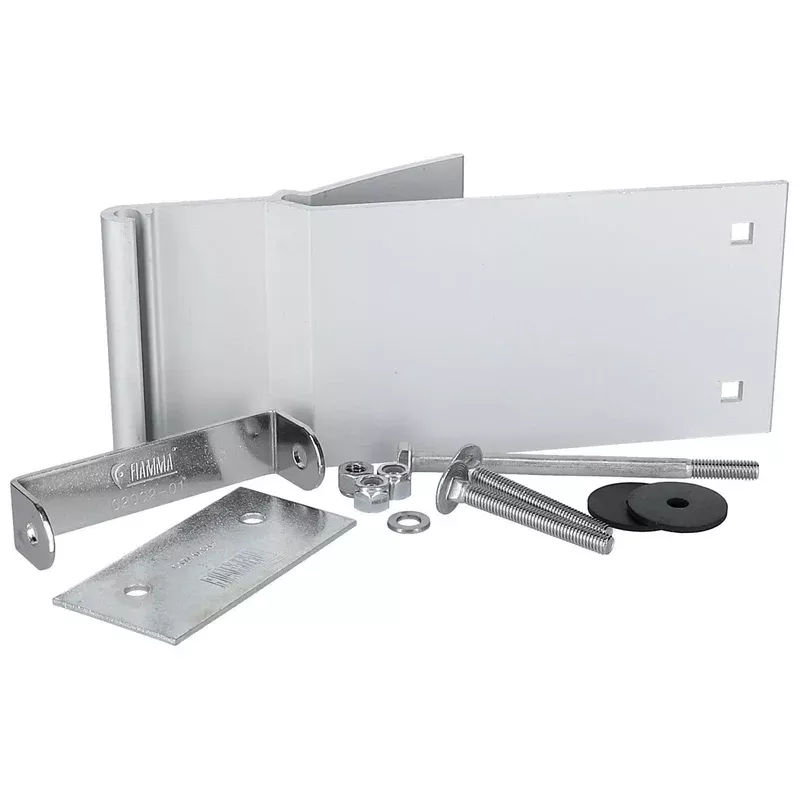

The Fiamma F45S/F45L Awning Long Roof Install Bracket B (02096-01)fromNomadic Supply Company® is the Long Roof Installation Bracket “B” designed for securely mounting any Fiamma F45 series awning to a high-roof or curved-roof vehicle. The longer profile provides increased surface contact and mounting strength, making the Fiamma F45S/F45L Awning Long Roof Install Bracket B (02096-01) ideal for RVs, camper vans, and vehicles where standard brackets do not offer adequate support.The Fiamma F45S/F45L Awning Long Roof Install Bracket B (02096-01) is one component used in the bracket combinations shown. Either the upper or lower arm can be removed; they allow for a curved roof or a flat roof (at any angle).
Fiamma F45S/F45L Awning Long Roof Install Bracket B (02096-01) Features:
- For awning types: F45S, F45L (and older models F45i / F45iL / F45Ti / F45TiL / F70)
- For vehicle model: If no suitable adapter set is available for your vehicle, you have the option of assembling your own adapter from 6 different aluminum profile parts. The mounting parts are generally 8 cm wide and can be combined with each other.
- 2 Sets of brackets are required for fitting a F45i awning from 2.5m to 3.0m.
- 3 Sets recommended for 3.5m to 4.0m
- 4 Sets for 4.5m
- 5 Sets for 5.0m
Fiamma F45S/F45L Awning Long Roof Install Bracket B (02096-01) Specifications:
- Bracket Type:“B” style – long roof mounting bracket
- Material:Heavy-duty galvanised steel with corrosion-resistant coating
- Function:Provides extended reach and secure attachment of the awning case to a high or curved roofline
- Includes:One bracket only (mounting hardware not included)Model: 200-04638
- Other Identifiers: 001263, 10692105
- Brand: Fiamma
- Original Model: 02096-01-
- Barcode: 8004815018757
- Width 80 mm
- Warning: B needs to be used with another component to work.
- Overall length 200 mm
- Shipping Weight: 360 grams.
- Shipping Dimensions: 5 cm x 9 cm x 20 cm.
Fiamma F45S/F45L Awning Long Roof Install Bracket B (02096-01) FAQs:
Will the Long Roof Bracket – Component (B) couple to the standard mounting brackets supplied with a Fiamma awning?
Answer: Yes. Component B is designed to interlock with the standard brackets supplied with the awning, so it will couple to the standard mounting bracket.Can this B component be used on curved roofs and flat roofs?
Answer: Yes. The upper or lower arm can be removed so the same B component can accommodate a curved roof or a flat roof at any angle.Is Component B a complete bracket on its own or does it need other parts to work?
Answer: Only if used with another bracket component. B is one piece of a bracket combination and is intended to be fitted together with the standard bracket or other adapter parts to form a complete roof mounting.
