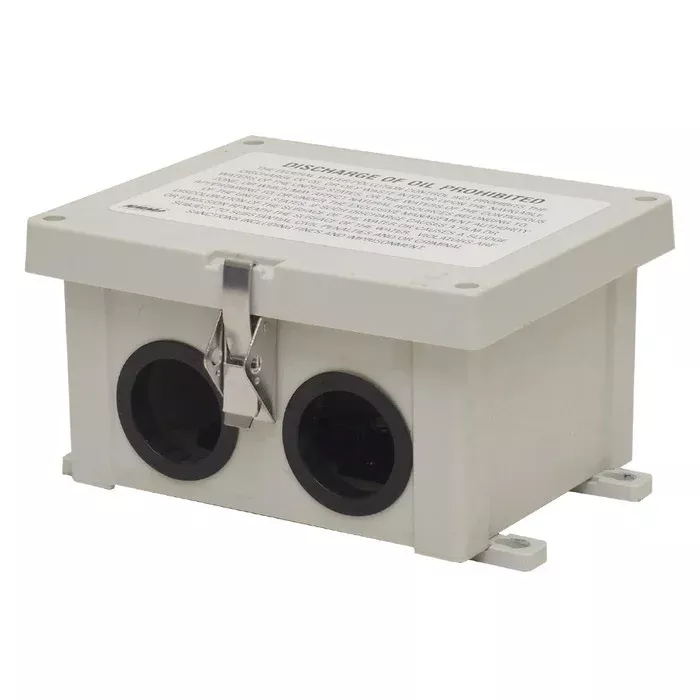

Boat part number 7410258 is a new junction box from Fibox, part number 92-000309 . Commonly used on Scout boats, part number ES4337 . May be used on other boats.
This enclosure is constructed out of gray polycarbonate, and measures approximately 8 1/2″ W (10 1/8″ w/ mounting feet) x 8 1/4″ D x 5 1/4″ H overall. The interior measures approximately 8″ W x 6 1/8″ D x 4 1/2″ H. Hosts (2) 2″ ID cutouts in one side. Mounts with (4) 3/16″ dia. slotted holes set apart 4 1/8″ x 9″ center to center.
The interior features (2) 5/16″-24 thread studded terminals. One labeled Port +/- and one labeled STBD +/-.
Tag reads: DNO (C/U) Box, Bilge Engine Junction
Specifications:
- Boat Manufacturer: Scout
- Model/Year: Unavailable
- Part Number: ES4337
- Part Manufacturer: Fibox
- Part Number: 92-000309
- Material: Polycarbonate
- Color: Gray
- Overall Dimensions: 8 1/2″ W (10 1/8″ w/ Mounting Feet) x 8 1/4″ D x 5 1/4″ H
- Interior Dimensions: 8″ W x 6 1/8″ D x 4 1/2″ H
- Cutouts: (2) 2″ ID
- Mounts: (4) 3/16″ Dia. Slotted Holes Set Apart 4 1/8″ x 9″ CTC
- Connections: (2) 5/16″-24 Thread Studded Terminals
