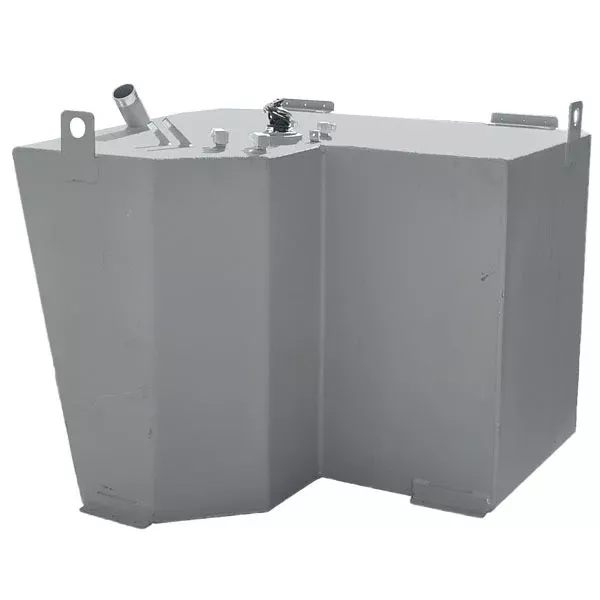

Boat part number 1073472 is a new 90 gallon fuel tank from Florida Marine Tanks, part number FMT-90AP-TB . We know this port fuel tank was designed for use with a (2005) 315 model boat, boat builder unavailable, part number 34877 .
Constructed out of 5052 aluminum. This tank measures approximately 33 1/2″ W x 34″ D x 27″ H (30 3/4″ H w/ fittings) overall. Features (1) 1 1/2″ OD filler / fuel inlet hose connection, (2) 5/8″ barbed vent hose connection and (2) 3/8″ barbed fuel out fitting. Tank is equipped with a (1) 30-240 ohms 23″ fuel sending unit.
Specifications:
- Part Manufacturer: Florida Marine Tanks
- Part Number: FMT-90AP-TB
- Boat Manufacturer: Unavailable
- Part Number: 34877
- Model: 315 (2005)
- Material: 5052 Aluminum
- Wall Thickness: 0.190
- Capacity: 90 Gallon (341 L)
- Fuel Type: Gasoline or Diesel
- Overall Dimensions: 33 1/2″ W x 34″ D x 27″ H (30 3/4″ H w/ fittings)
Sold as seen in pictures. Customers please note every computer shows colors differently. All measurements are approximate. Instruction / installation manual not included. Hardware not included.
Because of the size and/or commodity of this item, we must ship via truckline. The shown freight cost is for the LOWER 48 STATES ONLY and shipped to a business at a commercial address WITH LOADING DOCK. We can ship to your residence, or possibly a nearby terminal. We can also offer international shipping. Please call or email for a shipping quote if needed.
