GLS stock number 8202364 is a new, out of the box, 120 Volt AC breaker panel by BH Electronics, part number 220-04494-P . Commonly used on Four Winns Boats, part number 025-4052 .

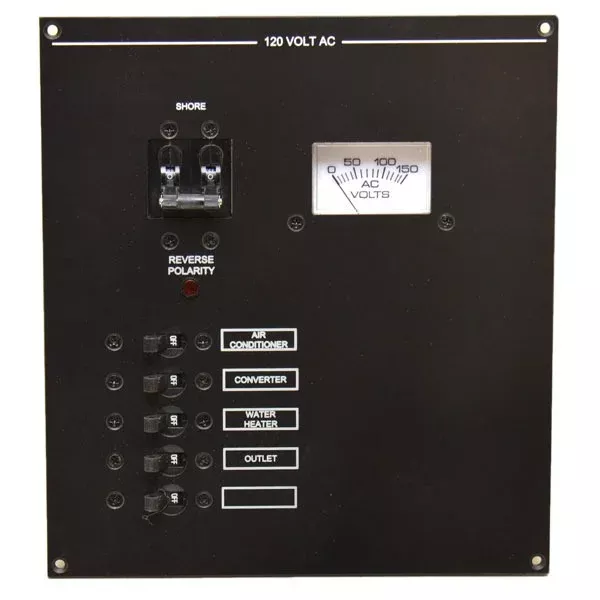

Constructed out of matte black marine grade plastic, this breaker panel measures approximately 9 1/2″ L x 10″ W overall. This panel features (1) 2 1/4″ L x 1 3/8″ W AC Volts gauge with a white face and black needle. There is (1) dual shore power breaker and (5) on/off breaker switches labeled; Air Conditioner, Converter, Water Heater, and Outlet. There is also (1) 1/4″ dia. LED labeled ‘Reverse Polarity.’ There are a total of (4) 3/16″ dia. mounting holes spaced 9″ and 10″ apart center on center. There is (1) heavy duty circular 3-pin male connector, (1) heavy duty circular 2-pin male connector, and (1) 4-pin female connector.
Specifications:
- Boat Manufacturer: Four Winns
- Part Number: 025-4052
- Part Manufacturer: BH Electronics
- Part Number: 220-04494-P
- Material: Marine Grade Plastic
- Color: Black
- Finish: Matte
- Electrical: 120V AC
- Overall Dimensions: 9 1/2″ L x 10″ W
- Mount(s): (4) 3/16″ dia. mounting holes spaced 9″ and 10″ apart center on center
- Connection(s): (1) circular 3-pin male connector / (1) circular 2-pin male connector / (1) 4-pin female connector
