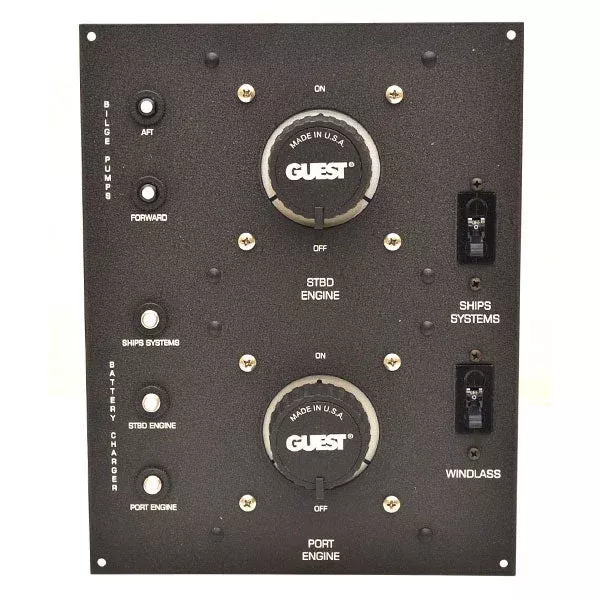

Boat part number 8202802 is a new battery switch panel assembly for a 2002 378 Vista Four Winns Boat, part number 025-2950 .
This switch panel is constructed out of black powdered coated aluminum with a matte finish. Measuring approximately 9″ L x 11 1/2″ H overall, and there are (4) approximately 1/8″ Dia. mounting holes around perimeter of panel, spaced 8 1/2″ apart center on center.
Battery panel host the following pre-marked breakers:
- Bilge Pumps | AFT / Forward (Reset-Push-Button Breakers)
- Battery Charger | Ships Systems / STBD Engine / Port Engine (Reset-Push-Button Breakers)
- Ships Systems | On/Off (Switch Breaker)
- Windlass | On/Off (Switch Breaker)
- STBD Engine | On/Off (Guest Selector Switch)
- Port Engine | On/Off (Guest Selector Switch)
- (2) 230 AMPS Guest Selector Switches – Model 2112A
Connection on panel:
- (1) 2 Pin Male Connector
- (1) 2 Pin Female Connector
Specifications:
- Boat Manufacturer: Four Winns
- Model: 378 Vista
- Year: 2002
- Part Number: 025-2950
- Material: Aluminum
- Color: Black
- Finish: Matte
- Overall dimensions: 9″ L x 11 1/2″ H
- Mounts: (4) 1/8″ Dia. Holes
- Connection: (1) 2 Pin Male Connector / (1) 2 Pin Female Connector
