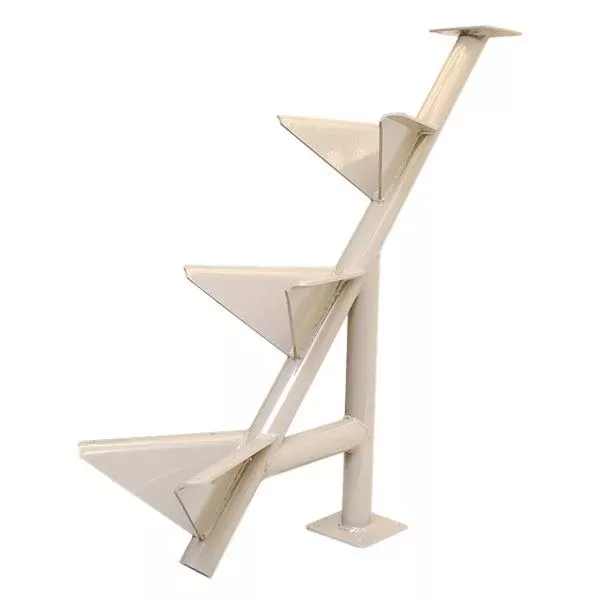

Boat part number 2001027 is a 3-step cabin entry stair frame from Four Winns Boats, part number 030-1912. This part may also be compatible with other boat models.
The stair frame is made from off white powder-coated aluminum. It measures approximately 11 3/4″ W x 41″ H x 37″ D overall. The top square mounting base includes five (5) 5/16″ diameter mounting holes, and the bottom square mounting base includes four (4) 5/16″ diameter countersunk mounting holes. Each step has four (4) 3/8″ diameter mounting holes spaced 4 3/8″ center-to-center.
Note: This stair frame does not include treads, hardware, or additional accessories. Contains cosmetic scuffs and scratches to the paint. Sold as shown in photos.
Please check with your local boat brand dealer for boat, brand, model, and year compatibility.
Specifications:
- Boat manufacturer: Four Winns Boats
- Boat part number: 030-1912
- Material: aluminum
- Color: off white
- Finish: powder coated
- Overall dimensions: 11 3/4″ W x 41″ H x 37″ D
- Mounting bases: (9) 5/16″ diameter mounting holes
- Step mounts: (4) 3/8″ diameter mounting holes each, 4 3/8″ apart center-to-center
- All sales final
