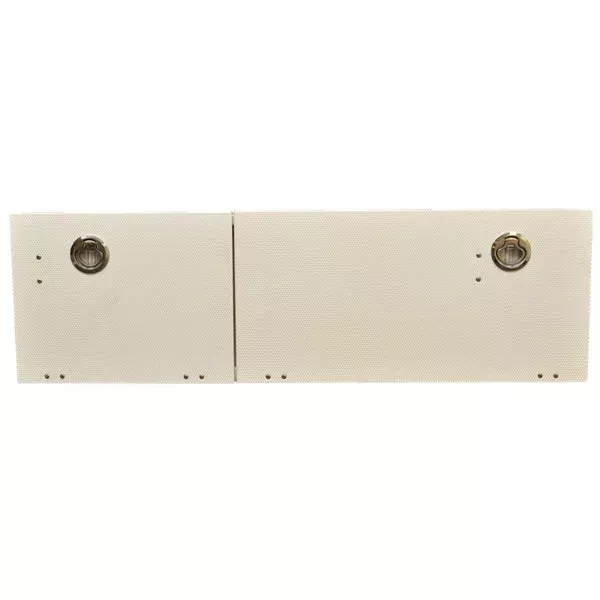

Boat part number 8202694 is a new transom access door commonly used on Four Winns boats, part number 032-2951 . May be used on other boats.
Constructed of starboard, this aft lid equipment measures approximately 35 7/8″ L x 10 7/8″ W x 2″ H. Each lid features a 2 1/2″ diameter stainless steel handle; please see specifications for specific lid and cutout dimensions.
May contain some stains, scuffs, or scratches from storage and handling.
Specifications:
- Boat Manufacturer: Four Winns
- Part Number: 032-2951
- Materials: Starboard
- Color: Cream
- Overall Dimensions: 35 7/8″ L x 10 7/8″ W x 2″ H
- Long Side: 22″ L x 10 7/8″ H
- Short Side: 13 7/8″ L x 10 7/8″ H
- Cutout: 34 3/8″ L x 9 3/8″ H
- Mounts: (12) 1/8″ Countersunk Holes
Inner Cutout Dimensions:
- 4 5/8″ Diameter
- 13″ L x 8″ H (Rounded Corners)
- 12 1/2″ L x 6 3/8″ H (Rounded Corners)
